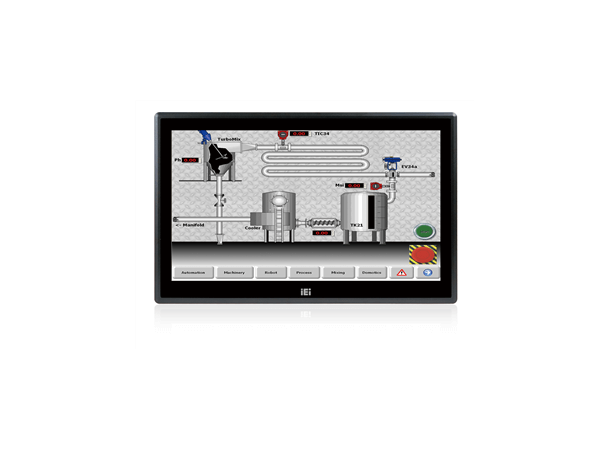

PPC-F22AA-H81i-i3/4G/PC-R13

21,5"/i3-4330/4GB ram/PC Touch

Product nr: 127857
255745
121449
Spec ItemDescription
Display
Backlight MTBF(hrs)30000
Brightness(cd/m2)250
Contrast Ratio41.6673611111111
LCD Size21.5”(16:9)
Max Resolution1920 (W) x 1080 (H)
Environment
Humidity10% to 95% (non-condensing)
IP LevelIP 65 compliant front panel
Operating Temperature-10°C~50°C (14°F~122°F)
Storage Temperature-20°C~60°C (-4°F~140°F)
I/O Interface
I/O Ports and Switches2 x RJ-45 LAN Port
2 x USB 3.0
4 x USB 2.0
1 x HDMI output
4 x RS-232
1 x RS-422/485
1 x VGA output
1 x AC/DC power plug (DC model is by build to order manufacturing)
1 x AT/ATX switch
1 x Clear CMOS
1 x Reset button
1 x Power switch
LCD
LCD Color16.7M
Pixel Pitch (mm)0.25 x 0.25
Viewing Angle (H-V)170° / 160°
Physical Characteristics
Cutout Dimensions341 x 536
Dimensions (LxWxH) (mm)350.4 x 550.4 x 71.7
Power
Power adapter12V DC
Touch
Touch Screen2-point projected capacitive touch window (EETI EXC7200), 6H
Weight
Weight10.1/14.4
