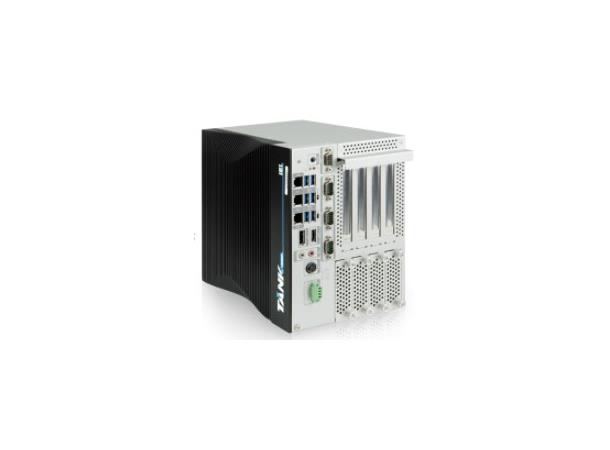

IEI TANK-880-Q370-i7R/8G/4A-R10
Ruggedized Fanless embedded system with Intel® i7-9700TE 1.8GHz, (up to 3.8GHz, 8-core, TDP 35W), 8GB DDR4 pre-installed memory, 1 x PCIe by 16 & 2 x PCIe by 4 & 1 x PCIe by 1 expansion, HDMI/DP, 9~36V DC, RoHS
Specifications
Model Name TANK-880-Q370
Chassis
Color Black C + Silver
Dimensions (WxDxH) 169 x 255.2 x 225 mm
System Fan Fanless
Chassis Construction Extruded aluminum alloys
Motherboard
CPU
8th Gen Intel®
Core™ CPU &
Intel®
Core™ i7-9700TE 1.8GHz (up to 3.8GHz, 8-core, TDP 35W)
Intel®
Core™ i5-9500TE 2.2GHz (up to 3.6GHz, 6-core, TDP 35W)
Chipset Intel® Q370
System Memory 2 x SO-DIMM DDR4 2666/ 2400 (8GB pre-installed) (up to 64GB)
Storage Hard Drive 4 x 2.5" HDD/SSD SATA 6Gb/s bay (with RAID 0/1/5/10 support)
I/O Interfaces
Ethernet
3 x RJ-45
1 x PCIe GbE by I219 controller
2 x PCIe GbE by I210 controller
USB 3.2 Gen 1 (5Gb/s) 6
COM Port 3 x RS-232/422/485 with AFC (DB-9 w/2.5 kV isolation protection)
Digital I/O 8 bit Digital I/O (4-input / 4-output)
Display 1 x HDMI 1.4b, 1 x DP
Audio 1 x Line-out, 1 x Mic-in
TPM 2.0 1 x TPM 2.0 (2 x 10 pin) (optional)
Expansions
PCIe Mini 1 x Full-size (PCIe/ USB 2.0/ SATA)
M.2 1 x 2230 A key (PCIe x2/ USB2.0)
2 x 2280 M key (PCIe x2)
Backplane 1 x PCIe by 16, 1 x PCIe by 1, 2 x PCIe by 4
Power
Power Input DC Jack: 9 V~36 V DC
Terminal Block: 9 V~36 V DC
Power Consumption 19V @ 5.4A (Intel®
Core™ i7-9700TE with 8GB memory)
Internal Power Output 12V @ up to 10A
Reliability
Mounting Wall mount
Operating Temperature -20°C ~ 60°C with air flow (SSD), 10% ~ 95%, non-condensing
Storage Temperature -40°C ~ 85°C with air flow (SSD), 10% ~ 90%, non-condensing
Operating Shock Half-sine wave shock 5G, 11ms, 100 shocks per axis
Operation Vibration MIL-STD-810G 514.6C-1 (with SSD)
Weight ( Net/Gross) 5.4 kg/8.45 kg
Safety / EMC CE/FCC
Watchdog timer Programmable 1 ~ 255 sec/min
OS Supported OS Microsoft®
Windows®
10 IoT Enterprise/ Linux
