Teollisuustietokoneet

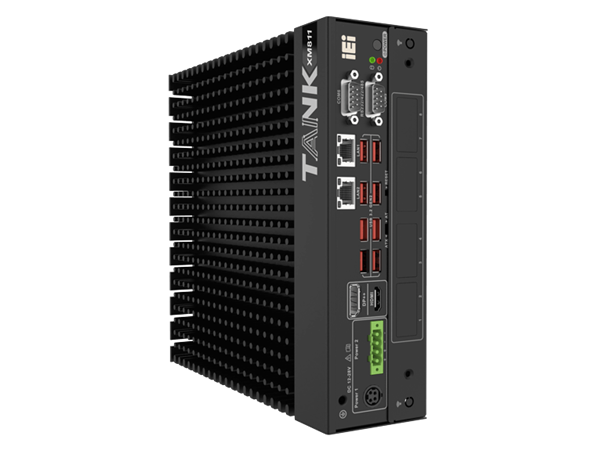

TANK-XM811-i5AC-R10 BoxPC

i5-12500TE/8GB RAM/1xHDMI,1xDP++, 14~28V

Product nr: 133702
TANK-XM811-i5AC-R10 BoxPC i5-12500TE/8GB RAM/1xHDMI,1xDP++, 14~28V
TANK-XM811.pdf
  • CPU:
    12th Gen Intel® Core™ CPU 35/65W
    Intel® Core™ i5-12500TE 1.9GHz (up to 4.3GHz, 6-core, 35W TDP)
    Intel® Core™ i7-12700TE 1.4GHz (up to 4.6GHz, 12-core, 35W TDP)
    Intel® Core™ i9-12900TE 1.1 GHz (up to 4.8 GHz, 16-core, 35W TDP)
  •  Chipset:
    R680E
  •  System Memory:
    2 x SO-DIMM DDR4 3200 (8GB pre-installed) (up to 64GB)
  •  Power:
    DC Jack: 12 V~28 V DC
    Terminal Block: 12 V~28 V DC
    Consumption: 12V @ 8.8A (Intel® Core™ i9-12900TE with 16GB memory)
  • IO
    •  USB:
      8 x USB 3.2 Gen 2
    •  Ethernet:
      2 x RJ-45:
      2 x 2.5 GbE by Intel ® I225V (colay I225LM)
    •  COM Port:
      2 x RS-232/422/485
      4 x RS-232
    •  Digital I/O:
      12-bit Digital I/O (6-in/ 6-out)
    •  Display:
      1 x HDMI™
      1 x DP++
    •  TPM:
      Support Intel PTT
    •  Watchdog Timer:
      Programmable 1 ~ 255 sec/min
    • Expansion Slots
      •  M.2:
        1 x 2280 M-key (PCIe x4)
        1 x 2230 A-key (USB+PCIe x1, supports vPRO)
      •  Backplane:
        Optional
    • For more information please see datasheet.
