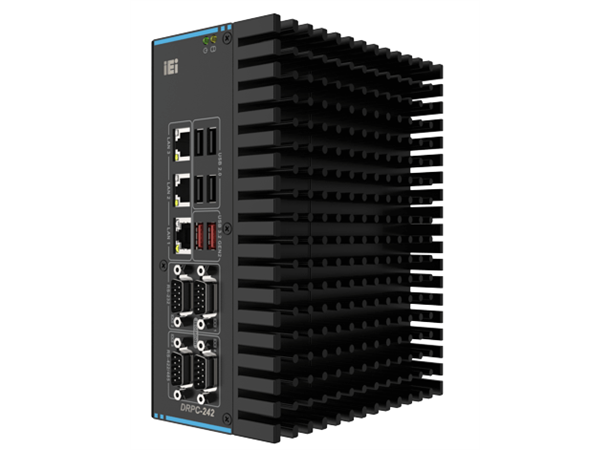

DRPC-242-ADL-P-i7CS-R10 DIN-rail box PC

i7-1260P/8GB ram/3x LAN/12-28VDC

Product nr: 137161
278462
DRPC-242-ADL-P_20231103.pdfProduct

  • CPU:
    Intel® Core™ i7-1260P (up to 4.7GHz, 12-core, 28W TDP)
  • Chipset:
    SoC
  • System Memory:
    2 x SO-DIMM slot DDR4 3200 MHz (8 GB pre-installed)
    (up to 64GB)
  • Power:
    3-pin terminal block: 12 ~ 28 VDC
    Consumption: 12V@4.46A (Intel® Core™ i7-1260P
    with DDR4 8G Memory)
  • I/O Ports
    • USB:
      2 x USB 3.2 Gen2
      4 x USB 2.0
    • Ethernet:
      1 x 2.5GbE by Intel® I225LM support iAMT
      2 x 2.5GbE by Intel® I225V (colay I225LM)
    • Display:
      1 x lockable HDMI™ 1.4b (up to 4096 x 2160@30Hz)
      1 x DP 1.4b (up to 4096 x 2160 @60Hz)
    • COM Port:
      2 x RS-232 (DB9 with 2.5KV isolation)
      2 x RS-232 (optional)
      2 x RS-422/485 with AFC (DB9 with 2.5KV isolation)
    • GPIO:
    • 1 x 12-bit(6-in, 6-out)(optional)
    • TPM:
      Support Intel PTT
    • Watchdog Timer:
      Programmable 1 ~ 255 sec/min
  • For mor info, check datasheet
