Features and Benefits
- 8 serial ports supporting RS-232/422/485
- Compact desktop design
- 10/100M auto-detecting Ethernet
- Built-in 15 KV ESD protection for all serial signals
- Easy IP address configuration with LCD panel
- Choice of confi guration methods: Web console, Telnet console, and Windows utility
- Versatile socket operation modes, including TCP Server, TCP Client, UDP, and Real COM
- SNMP MIB-II for network management
- Built-in recorder: Use your own voice as the alert when exceptions occur
Introduction

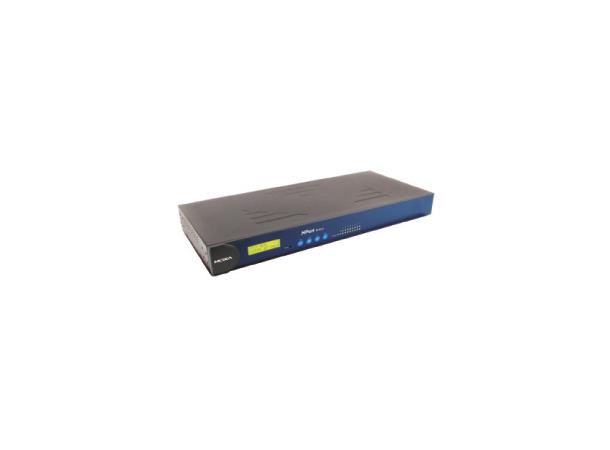

NPort® 5600-8-DT device servers can conveniently and transparently connect 8 serial devices to an Ethernet, allowing you to network your existing serial devices with only basic configuration. You can both centralize management of your serial devices and distribute management hosts over the network. Since the NPort® 5600-8-DT device servers have a smaller form factor compared to our 19" models, they are a great choice for applications that need additional serial ports, but for which mounting rails are not available.
LAN Interface
Number of Ports 2
Speed 10/100 Mbps
Connector(s) 8-pin RJ45
Magnetic Isolation Protection 1.5 KV built-in
• Serial Interface
Serial Standards NPort® 5610-8-DT: RS-232
NPort® 5650-8-DT: RS-232/422/485
Number of Ports 8
Connectors NPort® 5610-8-DT/5650-8-DT/5650I-8-DT: DB9 male
NPort® 5610-8-DT-J/5650-8-DT-J: RJ45 (8 pins)
Serial Line Protection 15 KV ESD protection for all signals
2 KV isolation protection (NPort® 5650I-8-DT only)
RS-485 Data Direction Control ADDC® (automatic data direction control)
• Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control DSR/DTR and RTS/CTS (RS-232 only), XON/XOFF
Baudrate 50 bps to 921.6 Kbps
• Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
• Software
Network Protocols ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP, HTTP, SMTP, SNTP, Rtelnet, ARP, RFC2217
Driver Support Windows Real COM driver (for Windows 95, 98, ME, NT, 2000, XP, 2003, Vista, XP x64, 2003 x64, Vista x64), Linux Real TTY driver, Fixed TTY driver (for SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i)
Configuration Options Web Console, Telnet Console, Windows Utility
• Mini Screen with Push Buttons
LCD Panel Liquid Crystal Display on the case
Push Buttons Four push buttons for convenient on-site configuration
• Physical Characteristics
Enclosure SECC sheet metal (0.8 mm), providing IP30 protection
Weight NPort® 5610-8-DT: 1760 g
NPort® 5610-8-DT-J: 1170 g
NPort® 5650-8-DT: 1770 g
NPort® 5650-8-DT-J: 1710 g
NPort® 5650I-8-DT: 1850 g
Dimensions Without ears: 197 x 44 x 135.5 mm (7.76 x 1.73 x 5.33 in)
With ears: 229 x 46 x 135.5 mm (9.01 x 1.81 x 5.33 in)
With DIN-Rail kit on bottom panel: 197 x 53 x 135.5 mm (7.76 x 2.09 x 5.33 in)
• Environmental Limits
Operating Temperature 0 to 55°C (32 to 131°F)
Operating Humidity 5 to 95% RH
Storage Temperature -20 to 70°C (-4 to 158°F)
• Power Requirements
Input Voltage 12 to 48 VDC
Power Consumption NPort® 5610-8-DT: 621 mA @ 12 V, 140 mA @ 48 V
NPort® 5610-8-DT-J: 621 mA @ 12 V, 140 mA @ 48 V
NPort® 5650-8-DT: 580 mA @ 12 V, 156 mA @ 48 V
NPort® 5650I-8-DT: 1066 mA @ 12 V, 200 mA @ 48 V
NPort® 5650-8-DT-J: 580 mA @ 12 V, 156 mA @ 48 V
• Regulatory Approvals
Safety UL (UL60950-1), TÜV (EN60950-1)
EMC CE (EN55022 Class A, EN55024), FCC Part 15 Subpart B Class A
• Reliability
Alert Tools Built-in buzzer and RTC (real-time clock)
Automatic Reboot Trigger Built-in WDT (watchdog timer)
• Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty
