Managed Gigabit Ethernet switch with 7 10/100BaseT(X) ports, 3 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -40 to 75°C operating temperature



Command Line Interface (CLI) for quickly configuring major managed functions
IPv6 Ready logo awarded (IPv6 Logo Committee certified)
Software-based IEEE 1588 PTPv2 (Precision Time Protocol) for precise time synchronization of networks
DHCP Option 82 for IP address assignment with different policies
Support EtherNet/IP, PROFINET, and Modbus/TCP protocols for device management and monitoring
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
IGMP snooping and GMRP for filtering multicast traffic
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
Port Trunking for optimum bandwidth utilization
RADIUS, TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
SNMPv1/v2c/v3 for different levels of network management
RMON for efficient network monitoring and proactive capability
Bandwidth management prevents unpredictable network status
Lock port function for blocking unauthorized access based on MAC address
Automatic warning by exception through e-mail, relay output
Configurable by web browser, Telnet/USB console, CLI, MXconfig, and ABC-02 automatic backup configurator
Introduction

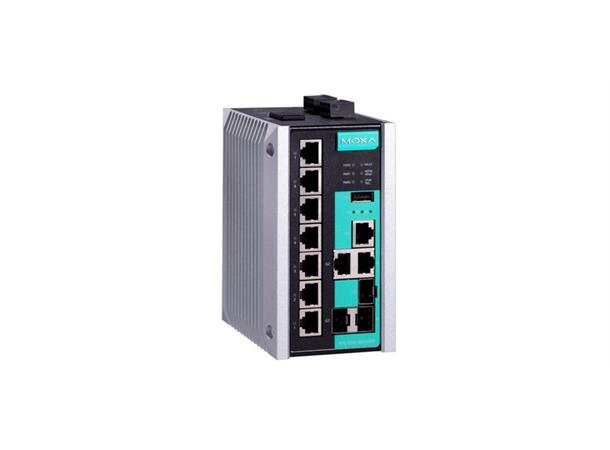

The EDS-510E Gigabit managed Ethernet switch is designed to meet rigorous mission critical applications, such as factory automation, ITS and process control. The 3 Gigabit Ethernet ports allows great flexibility to build up a Gigabit redundant Turbo Ring and a Gigabit uplink. The switch adopts USB interfaces for switch configuration, system file backup, and firmware upgrade, making it easier to manage.
