Gigabit high power PoE+ injector, max. output of 60 W at 24/48 VDC, -40 to 75°C operating temperature

High power mode provides up to 60 W
DIP switch configurator and LED indicator for PoE management
3kV surge resistance for harsh environments
Mode A and Mode B selectable for flexible installation
Built-in 24/48 VDC booster for redundant dual power inputs
-40 to 75°C operating temperature range (T model)

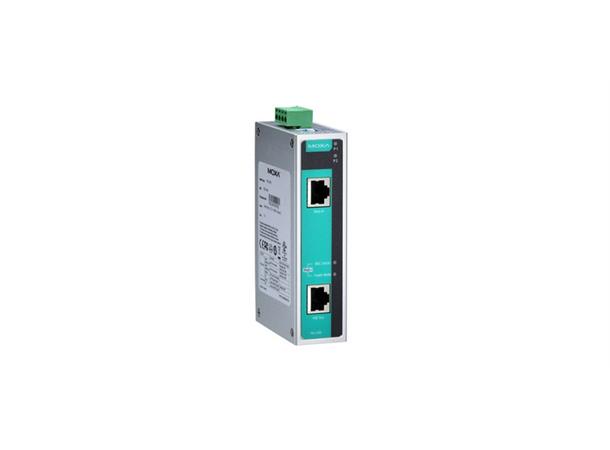

The INJ-24A is a Gigabit High Power PoE+ Injectors that combines power and data and delivers them to a powered device over one Ethernetcable. Designed for power-hungry devices, the INJ-24 injector provides up to 60 watts, twice as much as conventional PoE+ injectors. It features DIP switch configurator and LED indicator for PoE management, and also supports 24/48 VDC power inputs for power redundancy and operational flexibility. The -40 to 75oC wide temperature range design makes the INJ-24 perfect for operating in critical industrial environments.
