• Fiber optic options for extending distance and electrical noise immunity

• Redundant dual 12/24/48 VDC power inputs

• Supports jumbo frame transmission up to 10 KB

• Relay output warning for power failure and port break alarm

• Broadcast storm protection

• -40 to 75°C operating temperature range: T-model

Introduction

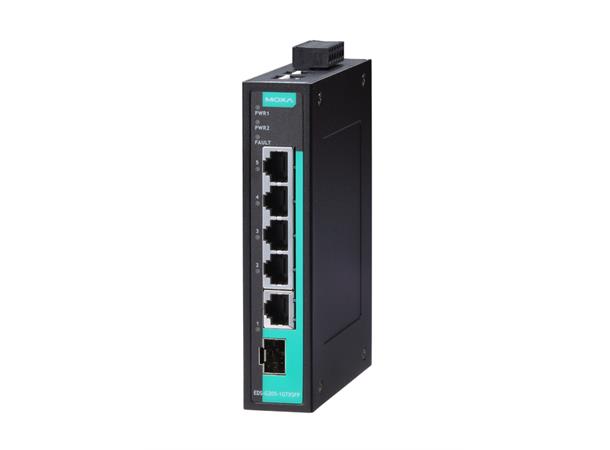

The EDS-G205-1GTXSFP are equipped with 5 Gigabit Ethernet ports, respectively, and up to 1 fiber optic
ports, making them ideal for applications that demand high bandwidth. The EDS-G205-1GTXSFP switches provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. In addition, the add-on 4-pin DIP
switches can be used for controlling over the functions of broadcast protection, jumbo frame, IEEE 802.3az energy saving and 100/1000 SFP speed switching is ideal for easy on-site configuration for any industrial automation application. Two models are available in this series. One model has an operating temperature range of -10 to 60°C, and the other model has an extended operating temperature range of -40 to 75°C. Both models
undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-G205-1GTXSFP switches can be installed easily on a DIN-rail or in distribution boxes.
