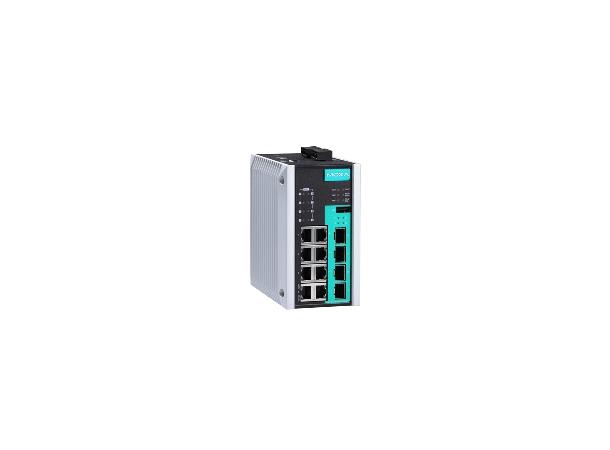

Moxa EDS-G512E-8PoE-4GSFP-T 12-port full Gigabit managed Ethernet switch, 8 10/100/1000BaseT PoE/PoE+ ports, 4 100/1000BaseSFP slots, -40 to 75°C operating temperature
Advanced PoE management function (PoE port setting, PD failure check, and PoE
scheduling)
• IGMP
snooping and GMRP for filtering multicast traffic
• Port-based VLAN, IEEE
802.1Q VLAN, and GVRP to ease network planning
• QoS (IEEE 802.1p/1Q) and
TOS/DiffServ to increase determinism
• Port Trunking for optimum bandwidth
utilization
• Command Line Interface (CLI) for quickly configuring major
managed functions
• IPv6 Ready logo awarded (IPv6 Logo Committee
certified)
• IEEE 1588 PTP V2 (Precision Time Protocol) for precise time
synchronization of networks
• DHCP Option 82 for IP address assignment with
different policies
• Support EtherNet/IP, PROFINET, and Modbus/TCP protocols
for device management and monitoring
• Turbo Ring and Turbo Chain (recovery
time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
•
TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhance network security
•
Lock port function for blocking unauthorized access based on MAC address
•
SNMPv1/v2c/v3 for different levels of network management
• RMON for
efficient network monitoring and proactive capability
• Bandwidth management
to prevent unpredictable network status
• Port mirroring for online
debugging
• Lock port function for blocking unauthorized access based on MAC
address
• Automatic warning by exception through e-mail, relay output
•
ABC-02-USB (Automatic Backup Configurator) for system
Introduction
The EDS-G512E Series is equipped with 12 Gigabit Ethernet ports and up to 4 fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. It also comes with 8 10/100/1000BaseT(X), 802.3af (PoE), and 802.3at (PoE+)-compliant Ethernet port options to connect high-bandwidth PoE devices. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly.
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the reliability of your system and improve the availability of your network backbone. The EDS-G512E Series is designed specifically for communication demanding applications, such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.
