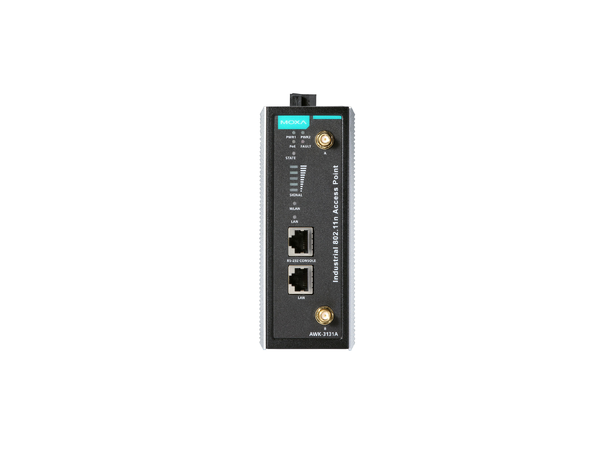

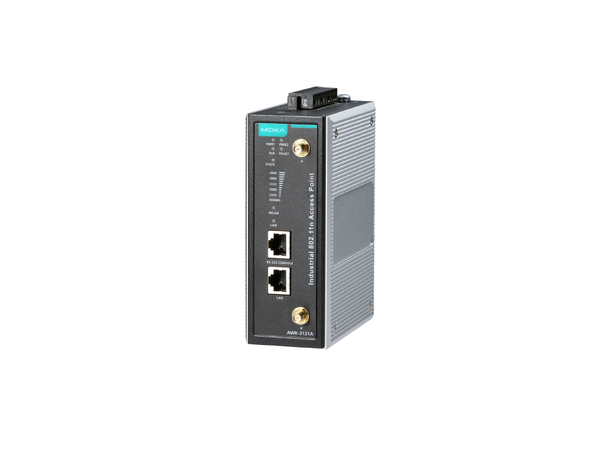

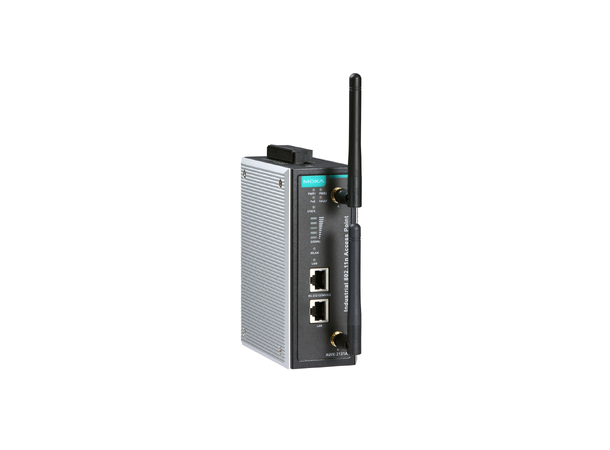

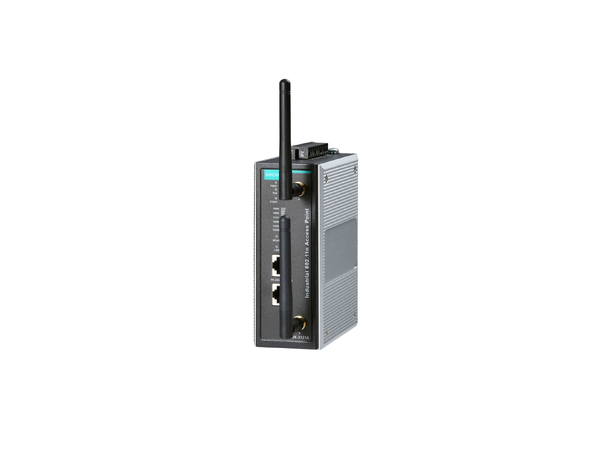

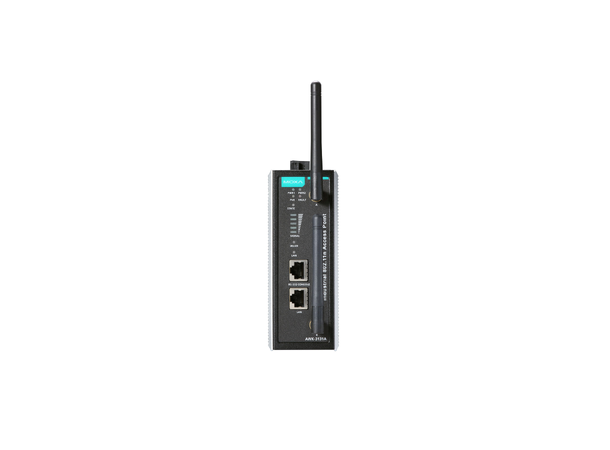

Moxa AWK-3131A-EU

The Moxa AWK-3131A-EU is a versatile industrial wireless AP/bridge/client designed to meet the growing need for faster data transmission speeds by supporting IEEE 802.11n technology with a net data rate of up to 300 Mbps. This device is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration, making it ideal for harsh environments.

Key Features

• High-Performance Wireless: Supports IEEE 802.11a/b/g/n AP/bridge/client modes.
• Easy Setup: AeroMag technology for error-free WLAN configuration.
• Seamless Roaming: Client-based Turbo Roaming for millisecond-level recovery.
• Redundancy: Complete redundancy with AeroLink Protection.
• Flexible Deployment: Operates on 2.4 or 5 GHz bands, backwards-compatible with 802.11a/b/g.
• Robust Design: Integrated antenna and power isolation, -25 to 60°C wide operating temperature range.

Moxa AWK-3131A-EU Specifications

Wireless Interface

• IEEE 802.11a/b/g/n
• Frequency Bands: 2.4 GHz, 5 GHz
• Data Rate: Up to 300 Mbps

Power Parameters

• Input Voltage: 12 to 48 VDC
• Power Consumption: 7.2 W (max)

Environmental Limits

• Operating Temperature: -25 to 60°C
• Storage Temperature: -40 to 85°C
• Ambient Relative Humidity: 5% to 95% (non-condensing)

Certifications

• EMC: EN 61000-6-2/-6-4
• EMI: CISPR 32, FCC Part 15B Class A
• EMS:
  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-6 CS: 3 V
  • IEC 61000-4-8 PFMF
• Hazardous Locations: ATEX, Class I Division 2, IECEx
• Radio: EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-WAPN008, MIC, NCC, RCM, SRRC, WPC, KC
• Safety: EN 60950-1, UL 60950-1
• Vibration: IEC 60068-2-6
