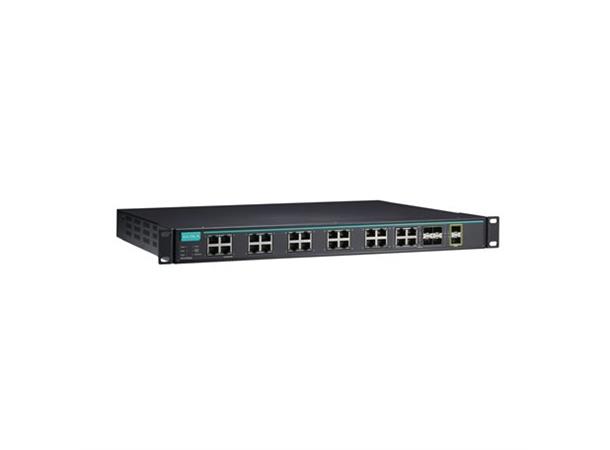

Moxa ICS-G7526A-8GSFP-4GTXSFP-2XG-HV-HV Layer 2 Full Gigabit managed Ethernet switch with 12 10/100/1000BaseT(X) ports, 8 100/1000BaseSFP slots, 4 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports and 2 10GbE SFP+ slots, 2 isolated power supplies (85 to 264 VAC), -10 to 60°C operating temperature

Features and Benefits

• 24 Gigabit Ethernet ports plus up to 4 10G Ethernet ports
• Up to 28 optical fiber connections (SFP slots)
• Fanless, -10 to 60°C operating temperature range
• Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
• Isolated redundant power inputs with universal 110/220 VAC power supply range
• Supports MXstudio for easy, visualized industrial network management
• V-ON™ ensures millisecond-level multicast data and video network recovery

Introduction

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7526A/G7528A series full Gigabit backbone switches are equipped with 24 Gigabit Ethernet ports plus up to 4 10 Gigabit Ethernet ports, and the ICS-G7826A/G7828A support Layer 3 routing functionality to facilitate the deployment of applications across networks, making them ideal for large scale industrial networks. The ICS-G7526A/G7528A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy protocols, and are fanless and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
