| • Technology |
| Standards | IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX |
| • Software Features |
| Management | IPv4/IPv6, PRP/HSR, SNMPv1/v2c/v3, DHCP Client, BootP, SMTP, RARP, HTTP, Telnet, LLDP, Flow Control, Back Pressure Flow Control, SNMP Inform, Port Mirror, Fiber Check, Syslog, RMON |
| Filter | Multicast Filter Behavior |
| Redundancy Protocols | PRP/HSR, RSTP Transparent |
| Security | RADIUS, TACACS+, Trusted Access Control, Authentication Certificate (SSL Certificate, SSH Key Regenerate) |
| Time Management | SNTP, NTP Server/Client, IEEE 1588v2 PTP |
| Industrial Protocols | Modbus/TCP |
| MIB | IEC 62439-3 MIB |
| Power Substation | MMS |
| • Interface |
| Gigabit Ethernet | 3 x 10/100/1000BaseT(X) ports or 100/1000BaseSFP combo ports |
| Console Port | Ethernet console (10/100/1000 Mbps RJ45), USB-serial console (Type B connector) |
| Storage Port | USB storage (Type A connector for ABC-02-USB) |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| Digital Inputs | 1 input with the same ground, but electrically isolated from the electronics• +13 to +30 V for state “1”
• -30 to +3 V for state “0”
• Max. input current: 8 mA |
| • Power Requirements |
| Input Voltage | • WV: 24/48 VDC
• HV: 110/220 VDC/VAC |
| Operating Voltage | • WV: 18 to 72 VDC
• HV: 88 to 300 VDC, 85 to 264 VAC |
| Input Current | • Max. 0.660/0.360 A @ 24/48 VDC
• Max. 0.150/0.080 A @ 110/220 VDC
• Max. 0.260/0.170 A @ 110/220 VAC |
| Overload Current Protection | Present |
| Connection | 5-pin terminal block |
| Reverse Polarity Protection | Present |
| • Physical Characteristics |
| Housing | Aluminum alloy |
| IP Rating | IP40 protection |
| Dimensions | 80 x 160 x 110 mm (3.15 x 6.30 x 4.33 in) |
| Weight | 1210 g (2.69 lb) |
| Installation | DIN-rail mounting |
| • Environmental Limits |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications |
| High Availability Automation Networks | IEC 62439-3 |
| Safety | UL 508 |
| EMI | FCC Part 15 Subpart B Class A, EN 55032 Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8
IEC 61000-4-11 |
| Electrical Substation | IEC 61850-3, IEEE 1613 |
| Rail Traffic | EN 50121-4 |
| • MTBF (mean time between failures) |

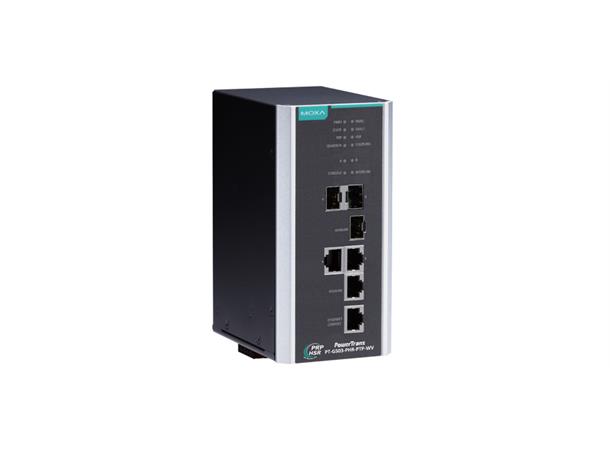

| Time | PT-G503-PHR-PTP-WV:440,857 hrs
PT-G503-PHR-PTP-HV:566,844 hrs |
| Standard | Telcordia TR/SR |
| • Warranty |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
