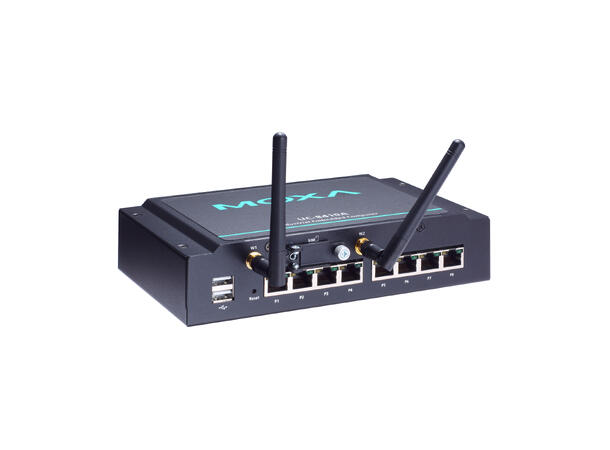

MOXA UC-8410A-LX
Arm-based wireless-enabled wall-mount industrial computer with Cortex-A7 1 GHz dual-core, 1 SD slot with 1 GB card preinstalled, 512 MB DDR3L RAM, 8 serial ports, 4 DIs, 4 DOs, 3 Ethernet ports, wireless enabled, 1 mSATA slot, 1 USB port, Debian 8, -10 to 60°C operating temperature
UC-8410A Series Features and Benefits
-
Freescale LS1021A Cortex-A7 1 GHz dual-core processor
-
1 GB DDR3 SDRAM
-
8 RS-232/422/485 serial ports
-
3 10/100/1000 Mbps Ethernet ports
-
Wireless-enabled with PCIe mini slot
-
2 USB 2.0 hosts for mass storage devices
-
Wall-mounting installation
-
Robust, fanless design
-
-40 to 75°C wide-temperature model available
-
Long-term Linux support until 2027; includes bug fixes and security patches
UC-8410A Series Introduction
The UC-8410A Series embedded computers support a rich collection of communication interfaces, including 8 RS-232/422/485 serial ports, 3 Ethernet ports, 1 PCIe mini slot for a wireless module, 4 digital input channels, 4 digital output channels, 1 mSATA slot, and 2 USB 2.0 hosts.
The UC-8410A computer uses the Freescale Cortex-A7 dual-core 1 GHz RISC CPU. This powerful computing engine supports several useful communications functions, without generating too much heat. The built-in 8 GB eMMC card and 1 GB DDR3 SDRAM give you enough memory to run your application software, and the mSATA slot provides the flexibility of adding additional data storage.
The UC-8410A computers come with a variety of communication interfaces, including serial ports, Ethernet ports, wireless communication slot, and digital input/output channels, making them ideal as communication platforms for industrial applications that require network and device communications.
The UC-8410A Series comes with Linux Debian 8 preinstalled to provide an open software operating system for software program development. This makes the UC-8410A computer an optimal solution for use with industrial applications, but at minimal cost and effort. In addition to the standard model of the UC-8410A, a -40 to 75°C wide-temperature model is available for harsh industrial environments.
