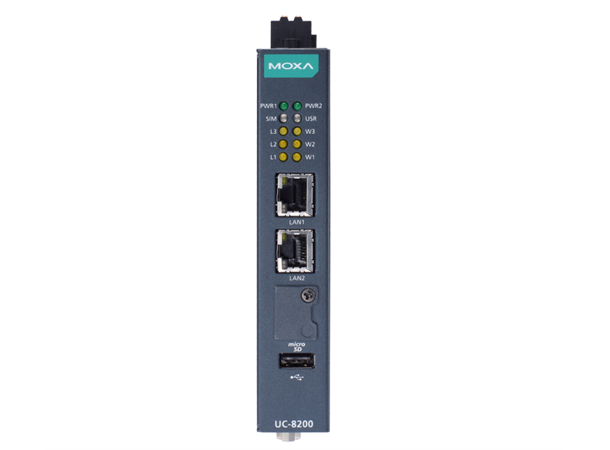

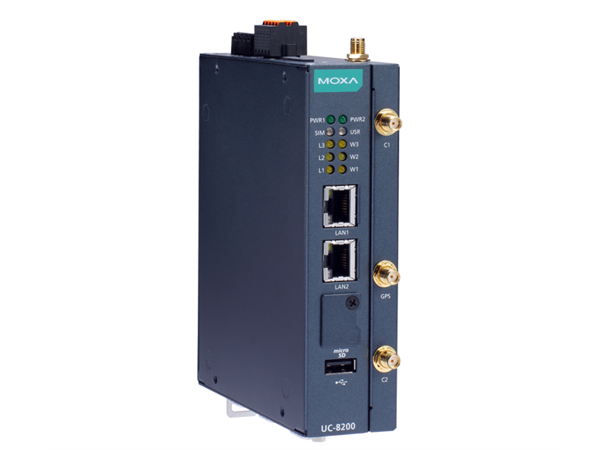

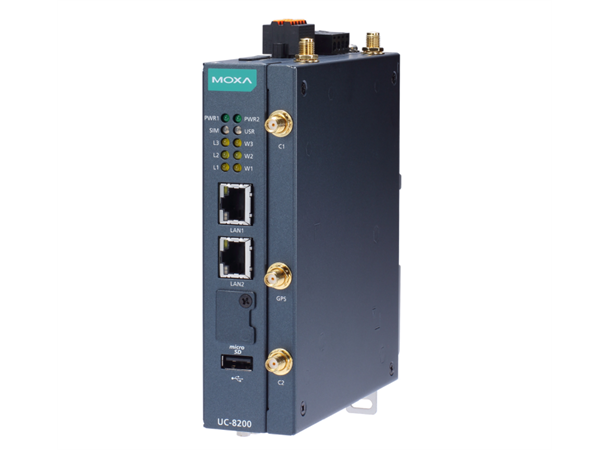

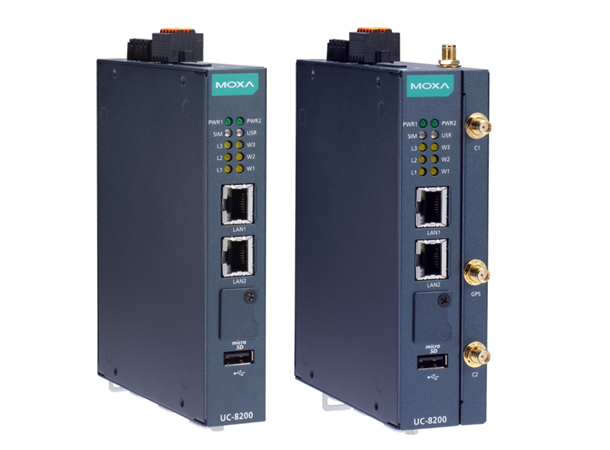

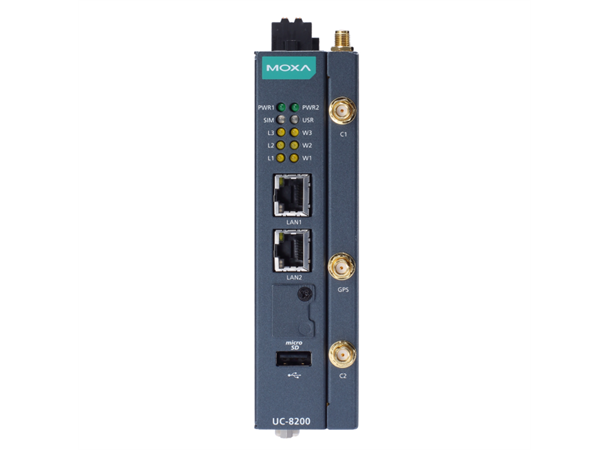

UC-8220-T-LX-EU-S Arm-based wireless-enabled DIN-rail industrial computer with wide operating temperature, dual core 1GHz CPU, 2GB RAM, 2 serial ports, 2 Ethernet ports, TPM, Europe LTE module built-in, and Linux pre-installed
Features
Armv7 Cortex-A7 dual-core 1 GHz
Moxa Industrial Linux with 10-year superior long-term support
LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
Dual-SIM slots
2 auto-sensing 10/100/1000 Mbps Ethernet ports
Integrated LTE Cat. 4 module with US/EU/APAC band support
1 CAN port supports CAN 2.0A/B
microSD socket for storage expansion
Programmable LEDs and a programmable button for easy installation and maintenance
-40 to 85°C wide temperature range and -40 to 70°C with LTE enabled
Introduction
The UC-8200 computing platform is designed for embedded data acquisition applications. The computer comes with dual RS-232/422/485 serial ports, dual 10/100/1000 Mbps Ethernet ports, and one CAN port as well as dual Mini PCIe socket to support Wi-Fi/cellular modules. These versatile capabilities let users efficiently adapt the UC-8200 to a variety of complex communications solutions.
The UC-8200 is built around a Cortex-A7 dual core processor that has been optimized for use in energy monitoring systems, but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communications platform for many other large-scale deployments.
Wide temperature LTE-enabled models are available for extended temperature applications. All units are thoroughly tested in a testing chamber, guaranteeing that the LTE-enabled computing platforms are suitable for wide-temperature applications.
The UC-8100 is built around a Cortex-A8 Arm–based processor that has been optimized for use in energy monitoring systems, but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communication platform for many other large-scale deployments.
