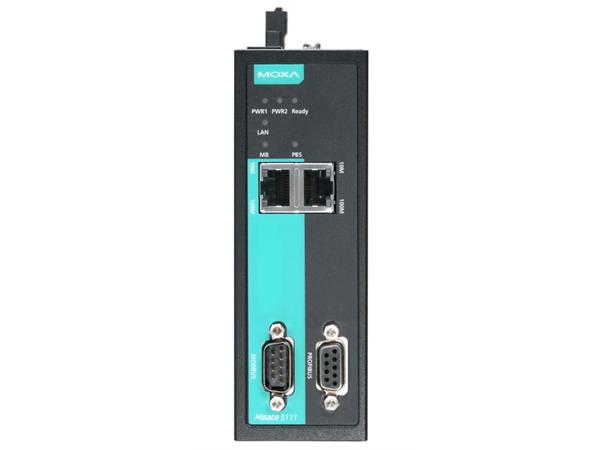

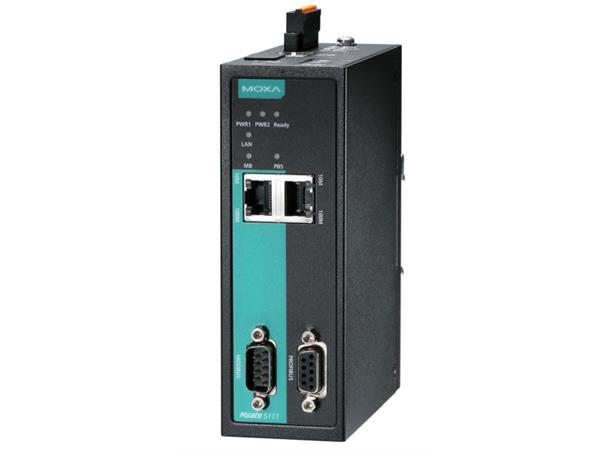

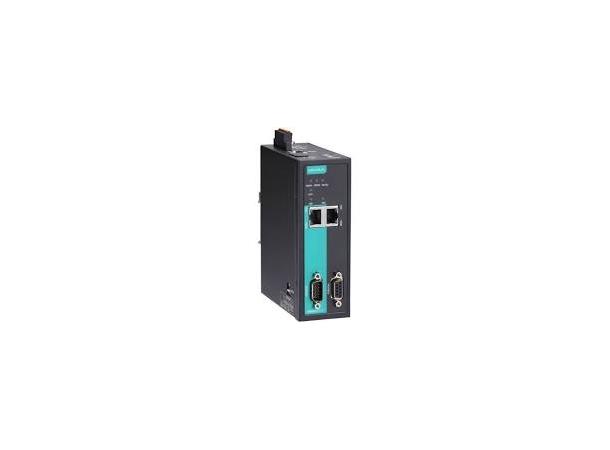

1-port Modbus/PROFINET/EtherNet/IP to PROFIBUS slave gateway -40°C to 75°C wide operating temperature

Features

Converts Modbus, PROFINET, or EtherNet/IP to PROFIBUS
Supports PROFIBUS DP V0 slave
Supports Modbus RTU/ASCII/TCP master/client and slave/server
Supports EtherNet/IP Adapter
Supports PROFINET IO device
Effortless configuration via web-based wizard
Built-in Ethernet cascading for easy wiring
Embedded traffic monitoring/diagnostic information for easy troubleshooting
Status monitoring and fault protection for easy maintenance
microSD card for configuration backup/duplication and event logs
Supports redundant dual DC power inputs and 1 relay output
Serial port with 2 kV isolation protection
-40°C to 75°C wide operating temperature
Security features based on IEC 62443

Introduction

Modbus is one of the most widely used industrial communication protocols, and EtherNet/IP, PROFINET, and PROFIBUS are commonly used in factory automation and process automation. The MGate 5111 supports both Modbus RTU/ASCII/TCP master and slave modes, so that you can easily connect your Modbus device to PROFIBUS PLCs or DCSs, such as Siemens PLCs.

For system integration, the MGate 5111 can connect to EtherNet/IP PLC/SCADA systems, such as Rockwell Automation PLCs, to PROFIBUS PLC/DCS systems, or between a new Siemens PLC system that supports PROFINET to an existing PROFIBUS system. The MGate 5111 gateways are designed for easy configuration and quick maintenance. A handy web console can be used to implement remote maintenance tasks, and the configuration wizard UI lets you quickly set up your gateway. A comprehensive collection of troubleshooting tools reduce configuration time and system downtime. The rugged design is suitable for industrial applications, such as factory automation, power, oil and gas, water and wastewater, and other process automation industries.
