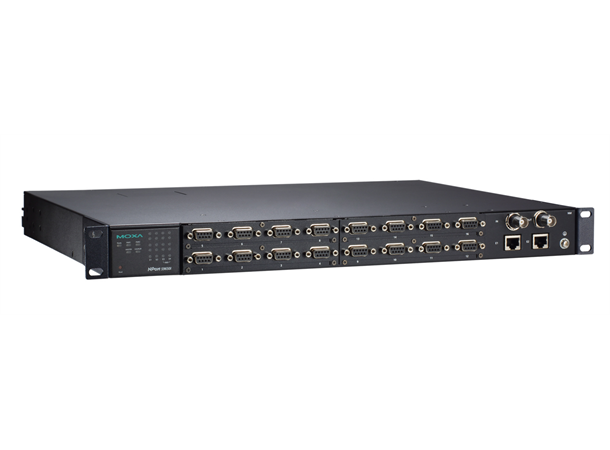

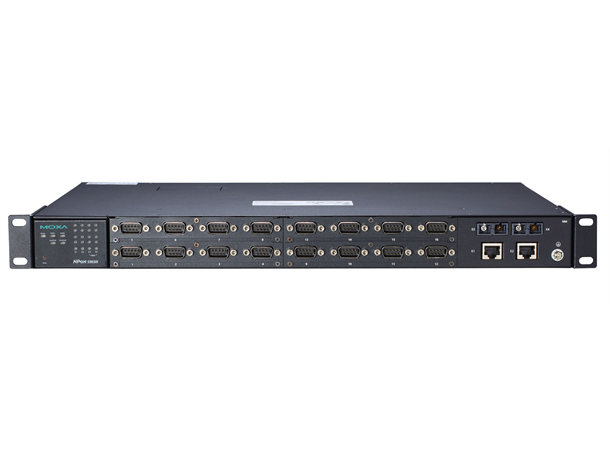

NPort S9650I-16B-2HV-IRIG-T

16-port RS-232/422/485 rugged device server with IRIG-B signal output on the serial ports, 2 10/100BaseT(X) ports with IEEE 1588v2 support, 88 to 300 VDC or 85 to 264 VAC, -40 to 85°C operating temperature, with IRIG-B BNC module

The NPort S9650I Series 8/16-port RS-232/422/485 device servers, which come with a built-in full-function managed Ethernet switch, are designed specifically for the harsh environmental conditions found in electrical substations. With both fiber and wired Ethernet ports supported, the combination of a device server and Ethernet switch gives users the ability to easily install, manage, and maintain the NPort S9650I itself, as well as attached serial devices.

Electromagnetic Compatibility for Harsh Substation Environments

The NPort S9650I Series supports a high level of surge protection to prevent damage from the types of power surges and EMI one finds in electrical substations and industrial automation applications. Combined with a -40 to 85°C operating temperature range and galvanized steel housing, the NPort S9650I is suitable for a wide range of industrial environments.

•  Supports up to 4 managed Ethernet switch ports (fiber available with some optional network modules)
•  16-port RS-232/422/485 serial interface
•  Supports DNP3 and Modbus protocols
•  Ethernet redundancy with Turbo Ring/Chain and RSTP/STP supported
•  Real COM/TTY drivers for Windows and Linux
•  IEC 61850-3, IEEE 1613 (power substations) compliant
•  IEEE 1588v2 and IRIG-B time synchronization functions
•  Supports IEC 61850 MMS protocol
•  Security features based on IEC 62443/NERC CIP
•  -40 to 85°C wide operating temperature
