Features and Benefits

Compact and flexible housing design to fit into confined spaces

Web-based GUI for easy device configuration and management

Web-based GUI for port diagnostics with statistics to detect and prevent issues

Multi-language web GUI: English, Traditional Chinese, Simplified Chinese, Japanese, German, and French

Supports RSTP/STP for network redundancy

Supports MRP client redundancy based on IEC 62439-2 to ensure high network availability

EtherNet/IP, PROFINET, and Modbus TCP industrial protocols supported for easy integration and monitoring in automation HMI/SCADA systems

IP port binding to ensure critical devices can be replaced quickly without reassigning the IP Address

Rotary DIP switch can perform profile-based settings without using a web browser

Security features based on IEC 62443

Introduction

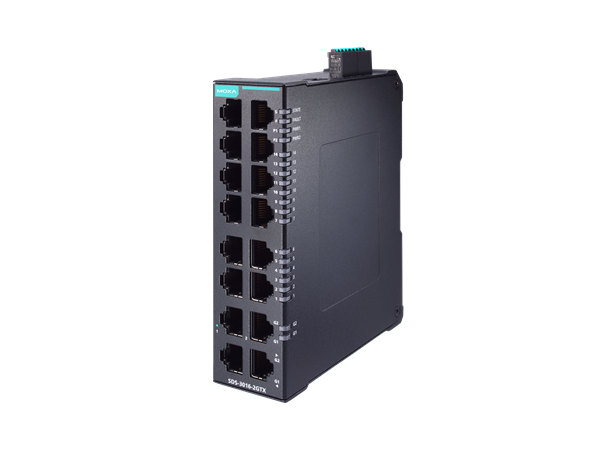

The SDS-3016 smart Ethernet switch is the ideal product for IA engineers and automation machine builders to make their networks compatible with the vision of Industry 4.0. By breathing life into machines and control cabinets, the smart switch simplifies daily tasks with its easy configuration and easy installation. In addition, it is monitorable and is easy to maintain throughout the entire product life cycle.

The most frequently used automation protocols—including EtherNet/IP, PROFINET, and Modbus TCP—are embedded in the SDS-3016 switch to provide enhanced operational performance and flexibility by making it controllable and visible from automation HMIs. It also supports a range of useful management functions, including IEEE 802.1Q VLAN, port mirroring, SNMP, warning by relay, and a multi-language Web GUI.
