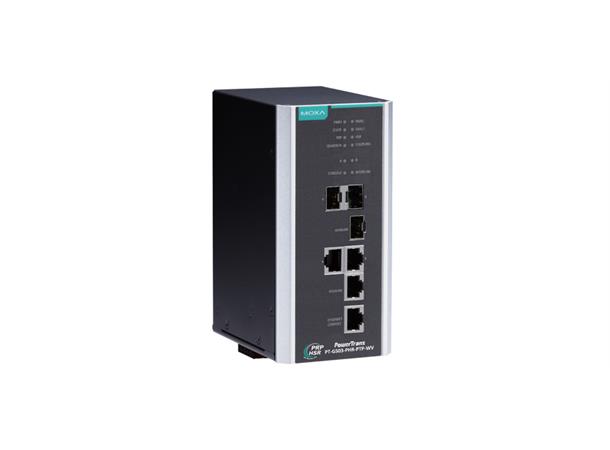

IEC 61850-3 and IEC 62439-3 full Gigabit managed redundancy box, with 3 10/100/1000BaseT(X) ports or 100/1000Base SFP ports, 1 10/100/1000BaseT(X) Ethernet console port, 1 isolated dual power supply(24/48 VDC), -40 to 85°C operating temperature

• IEC 61850-3, IEEE 1613 (power substations) compliant
•  IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant
•  PRP/HSR Coupling and QuadBox functions supported
•  Ethernet console reserved for local access
•  Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
•  Hardware-based IEEE 1588v2 PTP supported
•  Design ready for NERC CIP compliant system development
•  Power inputs with universal 24 VDC, 48 VDC, or 110/220 VDC/VAC power supply range
•  -40 to 85°C operating temperature range
