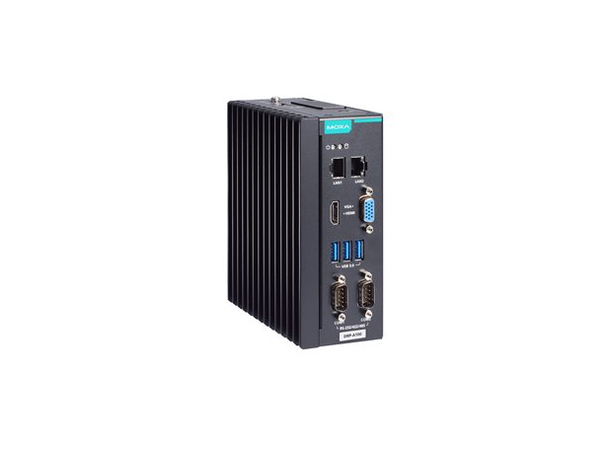

Moxa DRP-A100-E2-T-Win10

DIN-rail computer with Intel Atom® x6211E processor, 2 LAN ports, 2 serial ports, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 1 CFast slot, 1 SD slot, 12/24 VDC power input, Windows 10 LTSC 2021 preinstalled, -30 to 60°C operating temperature

Key feature

• Computer
  CPU: DRP-A100-E2 Models: Intel Atom® x6211E Processor (Dual core, 1.5M Cache, 1.30 GHz) , DRP-A100-E4 Models: Intel Atom® x6425E Processor (Quad core, 1.5M Cache, 2.00 GHz)
  System Memory Slot: SODIMM DDR4 slots x 1, up to 32 GB max.
  System Memory Pre-installed: 8 GB DDR4
  Storage Slot: CFast slot x 1 (SATAIII interface) , SD slots x 1, SD 3.0 interface (SDHC/SDXC)
  Storage Pre-installed: DRP-A100-E2-T-Win10: 64-GB CFast card , DRP-A100-E4-T-Win10: 64-GB CFast card
  Supported OS:
  Windows Images and Drivers Supported:
  - Windows 10 IoT Ent LTSC 2021 64-bit
  - Windows 11 Professional 64-bit
• Linux Drivers Supported:
  - Debian 11 (Kernel 5.10)
  - Ubuntu 22.04 LTS (Kernel 5.15)
  - RHEL 9 (Kernel 5.14)
  Graphics Controller: Intel® UHD Graphic
• Computer Interface
  Ethernet Ports:
  DRP-A100-E2-T/E2-T-Win10/E2-6C-T/E4-T/E4-T-Win10/E4-6C-T:
  Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
  DRP-A100-E2-2L4C-T/E4-2L4C-T:
  Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
  DRP-A100-E2-8L-T/E4-8L-T:
  Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 10
  Serial Ports:
  DRP-A100-E2-T/E2-T-Win10/E2-8L-T/E4-T/E4-T-Win10/E4-8L-T:
  RS-232/422/485 ports x 2, software selectable (DB9 male) x 2
  DRP-A100-E2-2L4C-T/E4-2L4C-T:
  RS-232/422/485 ports x 6, software selectable (DB9 male) x 6
  DRP-A100-E2-6C-T/E4-6C-T:
  RS-232/422/485 ports x 8, software selectable (DB9 male) x 8
  USB 3.0: USB 3.0 hosts x 3, type-A connectors
  TPM: TPM v2.0
  Video Output: HDMI 2.0b x 1, (type A connector) , VGA x 1, 15-pin D-sub connector (female)
  Buttons: Reset button , Power button
• Ethernet Interface
  Magnetic Isolation Protection: 1.5 kV (built-in)
• Serial Interface
  Baudrate: 50 bps to 115.2 kbps
  Connector: DB9 male
  Data Bits: 5, 6, 7, 8
  Parity: None, Even, Odd, Space, Mark
  Stop Bits: 1, 1.5, 2
  Flow Control: RTS/CTS, XON/XOFF
• Serial Signals
  RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  RS-422: Tx+, Tx-, Rx+, Rx-, GND
  RS-485-2w: Data+, Data-, GND
  RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
• LED Indicators
  System: Power x 1 , Storage x 1
  LAN: 2 per port (10/100/1000 Mbps)
• Power Parameters
  Input Voltage: 12/24 VDC
  Power Connector: Screw-fastened Euroblock terminal
  Power Consumption: 50 W
• Physical Characteristics
  Housing: Metal
  IP Rating: IP20
  Dimensions:
  DRP-A100-E2-T/E2-T-Win10/E4-T/E4-T-Win10:
  60 x 130 x 150 mm (2.36 x 5.12 x 5.91 in)
  DRP-A100-E2-8L-T/E2-6C-T/E2-2L4C-T/E4-8L-T/E4-6C-T/E4-2L4C-T:
  94 x 130 x 150 mm (3.70 x 5.12 x 5.91 in)
  Weight:
  DRP-A100-E2-T/E2-T-Win10/E4-T/E4-T-Win10:
  1,213 g (2.67 lb)
  DRP-A100-E2-8L-T/E2-6C-T/E2-2L4C-T/E4-8L-T/E4-6C-T/E4-2L4C-T:
  1.612 g (3.55 lb)
  Installation: DIN-rail mounting
• Declaration
  Green Product: RoHS, CRoHS, WEEE
• Environmental Limits
  Operating Temperature: -30 to 60°C (-22 to 140°F)
  Storage Temperature: -40 to 75°C (-40 to 167°F)
  Ambient Relative Humidity: 5 to 95% (non-condensing)
• Standards and Certifications
  EMC: EN 55032/35
  EMI: CISPR 32, FCC Part 15B Class A
  EMS:
  IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
  IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
  IEC 61000-4-6 CS: 3 V
  IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
  Safety: UL 62368-1 (CB), BSMI
  Shock: IEC 60068-2-27
  Vibration: IEC 60068-2-64
  Package Drop Test: ISTA 1A
  Package Vibration Test: ISTA 1A
• Reliability
  Time Source: Built-in RTC (real-time clock) with lithium-battery backup
  Automatic Reboot Trigger :Built-in WDT
• MTBF
  Time: 566,300 hrs
  Standards: Telcordia (Bellcore), GB
• Warranty
  Warranty Period: 3 years
  Details: See www.moxa.com/warranty
