Moxa MPC-3120W-E4-T

12.1-inch panel computer with Intel Atom® x6425E quad-core 2.0 GHz processor, 8 GB RAM, 1000-nit multi-touch PCAP LCD, 2 LAN, 2 serial, 2 USB 3.0, 12/24 VDC power input, IP66 front panel, -30 to 60°C operating temperature

Features and Benefits

• 12.1-inch panel computers
• Intel Atom® x6211E dual-core or x6425E quad-core processor
• -30 to 60°C operating temperature, fanless design, no heater required
• 400-nit or 1000-nit sunlight-readable LCD
• Glove-friendly, multi-touch screen
• DNV, CID2, ATEX Zone 2, and IECEx compliant
• 12/24 VDC power input



Introduction

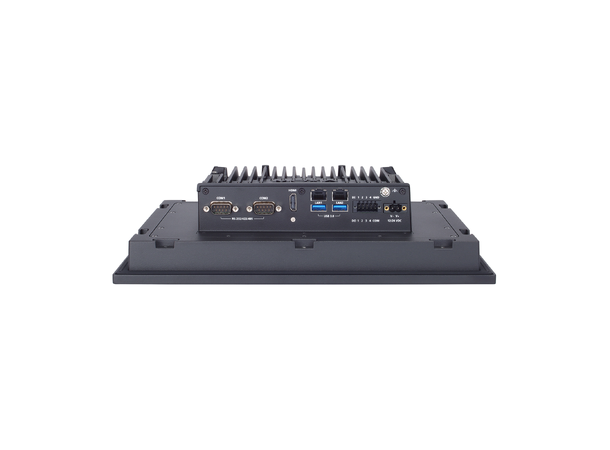

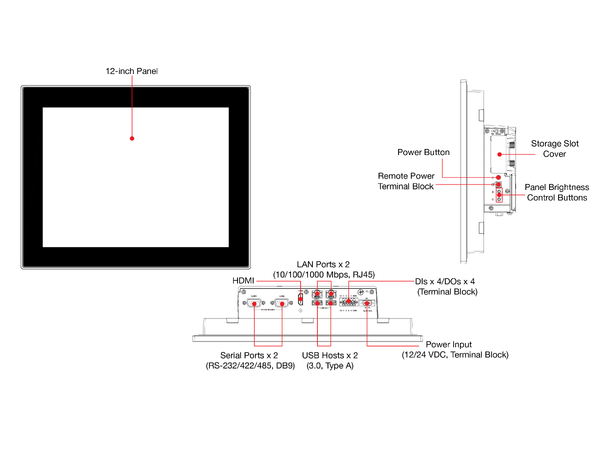

The MPC-3120W 12.1-inch panel computers with Intel Atom® x6211E dual-core or x6425E quad-core processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two software selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the MPC-3120W panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy.

The MPC-3120W panel computers are designed for the -30 to 60°C temperature range, and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation. This makes the computers reliable industrial platforms for harsh, hot, outdoor environments like oil and gas fields, or drilling platforms. The MPC-3120W also features a 400-nit or 1000-nit LCD panel offering a sunlight-readable, projected-capacitive, glove-friendly, multi-touch screen for excellent user experience in outdoor applications.

Standards and Certifications

EMC:

EN 55032/35

EMI :

CISPR 32, FCC Part 15B Class A

EMS:

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m

IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV

IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV

Environmental Testing:

IEC 60068-2-1, DNV-CG-0339

IEC 60068-2-1, IEC 60945

IEC 60068-2-2, DNV-CG-0339

IEC 60068-2-2, IEC 60945

IEC 60068-2-30, DNV-CG-0339

Hazardous Locations :

ATEX Zone 2

Class I Division 2

IECEx Zone 2

Maritime :

DNV-CG-0339, IEC 60945, IACS E10

Safety :

IEC 62368-1

UL 62368-1

Shock:

IEC 60068-2-27

Vibration :

IEC 60068-2-6, DNV-CG-0339, IEC 60945

IEC 60068-2-64, DNV-CG-0339
