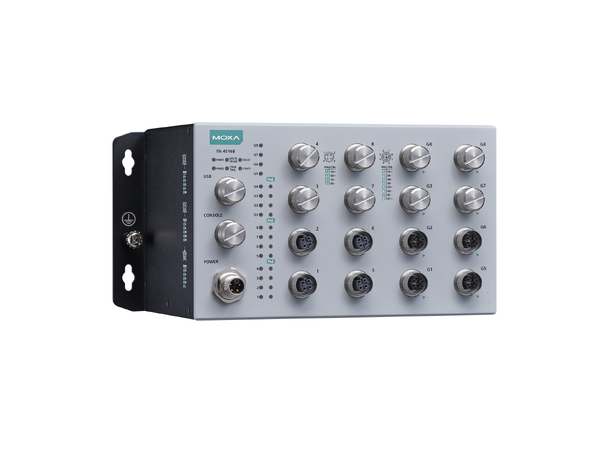

MOXA TN-4516B-8G-CT-T

EN 50155 16-port L2 switch including 8 FE ports, 8 Gigabit ports, 24 to 110 VDC power input, -40 to 70°C operating temperature, IP42, conformal coating

Features and Benefits

Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
Up to 28 Ethernet ports with M12 push-pull connectors
Up to 8 Gigabit ports with optional dual relay bypass functionality
Up to 24 PoE ports with a 150 W total PoE power budget
Isolated power with 24 to 110 VDC power supply range
-40 to 70°C system operating temperature range
Complies with all EN 50155 mandatory test items
Powered by MX-NOS Rail Version, a comprehensive management firmware tailored to the unique demands of onboard railway networks

Introduction

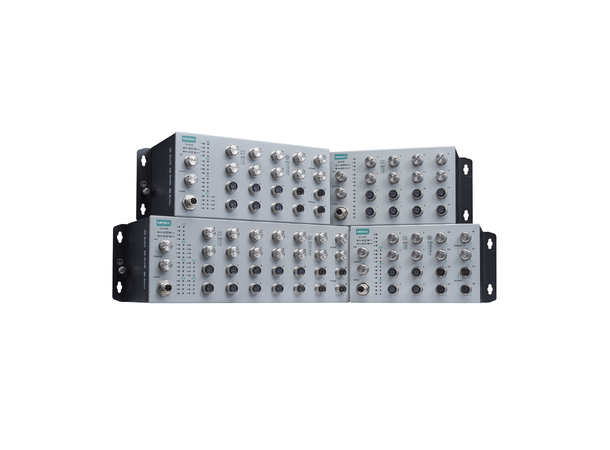

The ToughNet TN-4500B Series M12 managed Ethernet switches are designed for railway applications, including rolling stock installations. The switches use M12 circular connectors to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibration and shock are commonplace. The TN-4500B Series Ethernet switches provide 8 to 28 Ethernet ports with or without IEEE 802.3at/af compliant PoE functionality. The Gigabit models further feature up to 8 Gigabit Ethernet ports.

The 24 to 110 VDC wide power input range and isolated dual power inputs not only allow you to use the same type of power source at different sites around the globe, but also increase the reliability of your communication systems. Furthermore, the -40 to 70°C operating temperature range of the switches ensures they can be deployed in harsh environments. TN-4500B Series Ethernet switches are compliant with the mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.

Additional Features and Benefits

IEC 62443-4-2:2019 compliant cybersecurity features
Robust EN 50155 Ethernet switches for rolling stock applications
Turbo Ring and RSTP/MSTP/STP/MRP for network redundancy
Wall mounting installation
Automatic recovery of the IP address of connected devices
Configurable by web browser, Telnet/serial console, or Windows utility
