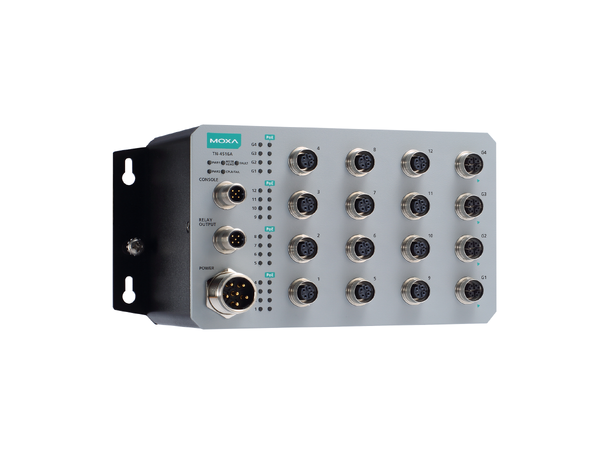

Moxa TN-4516A-WV-CT-T

The Moxa TN-4516A-WV-CT-T is a high-performance industrial Ethernet switch designed for railway applications, including rolling stock and wayside installations. This switch features 16 10/100BaseT(X) ports with M12 connectors, ensuring reliable and secure connections in harsh environments.

Key Features

• High-Performance Ports: 16 10/100BaseT(X) ports with M12 connectors.
• Wide Power Input Range: 24 to 110 VDC.
• Robust Design: Complies with EN 50155 standard for railway applications, with an operating temperature range of -40 to 70°C.
• Conformal Coating: Provides additional protection against moisture, dust, chemicals, and temperature extremes.
• Advanced Security: Supports HTTPS, SSH, and RADIUS/TACACS+ for secure management.
• Easy Configuration: Web console (HTTP/HTTPS) and Command Line Interface (CLI) through Serial/Telnet/SSH.
• Redundancy Protocols: Turbo Ring, Turbo Chain, and STP/RSTP/MSTP for network redundancy.

Moxa TN-4516A-WV-CT-T Specifications

Ethernet Interface

• 10/100BaseT(X) Ports: 16 (M12 connector)

Power Parameters

• Input Voltage: 24 to 110 VDC
• Input Current: 0.33 A @ 24 VDC

Environmental Limits

• Operating Temperature: -40 to 70°C (-40 to 158°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5% to 95% (non-condensing)

Certifications

• EMC: EN 55032/35
• EMS:
  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8 PFMF
• Freefall: IEC 60068-2-31
• Radio Frequency: FCC
• Railway: EN 50121-4, EN 50155, IEC 60571
• Railway Fire Protection: EN 45545-2
• Safety: UL 62368-1, IEC 62368-1, EN 62368-1
• Shock: IEC 60068-2-27, IEC 61373, EN 50155
• Vibration: IEC 60068-2-64, IEC 61373, EN 50155
