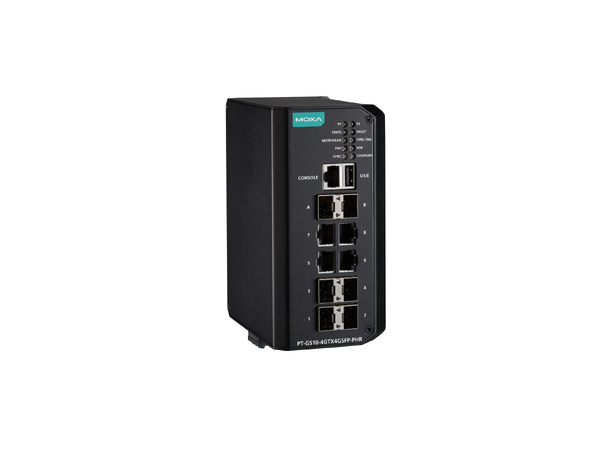

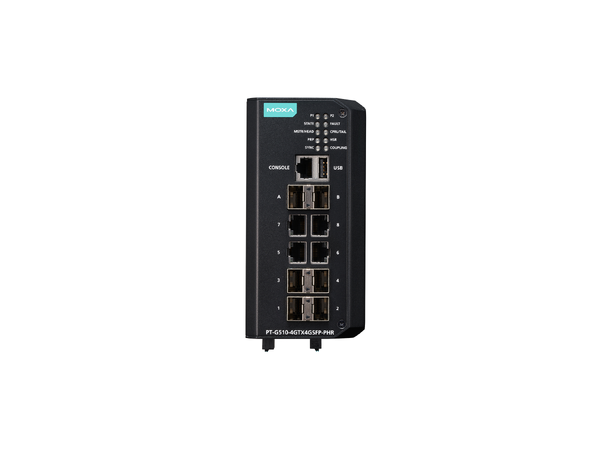

Moxa PT-G510-4GTX4GSFP-PHR-WV-CT

The Moxa PT-G510-4GTX4GSFP-PHR-WV-CT is a Layer 2 managed Ethernet switch designed for mission-critical applications in digital substations. It features 4 100/1000BaseT(X) ports and 4 100/1000BaseSFP ports, with isolated dual power supply support, making it ideal for robust and reliable network connections.

Key Features

• High-Performance Ports: 4 100/1000BaseT(X) ports and 4 100/1000BaseSFP ports.
• Wide Power Input Range: 24/48 VDC (18 to 72 VDC).
• Robust Design: IP30 rating and -40 to 75°C operating temperature.
• Advanced Security: Supports various security protocols including RADIUS, TACACS+, and SSH.
• Network Redundancy: Supports PRP, HSR, MRP, STP, MSTP, and RSTP for maximum network reliability.
• Time Synchronization: IEEE 1588v2 PTP (hardware-based) support.
• Conformal Coating: PCB conformal coating for protection against dust and moisture.

Moxa PT-G510-4GTX4GSFP-PHR-WV-CT Specifications

Ethernet Interface

• 100/1000BaseT(X) Ports: 4 (RJ45 connector)
• 100/1000BaseSFP Ports: 4

Power Parameters

• Input Voltage: 24/48 VDC (18 to 72 VDC)
• Input Current: 1.1 A @ 24-48 VDC

Environmental Limits

• Operating Temperature: -40 to 75°C
• Storage Temperature: -40 to 85°C
• Ambient Relative Humidity: 5% to 95% (non-condensing)

Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS:
  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  • IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  • IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8 PFMF
  • EN 61000-4-11
• Power Substation: IEC 61850-3 Edition 2.0 Class 2, IEEE 1613
• Railway: EN 50121-4
• Maritime: IEC 60945, DNV
• Safety: IEC 62368-1, UL 62368-1
