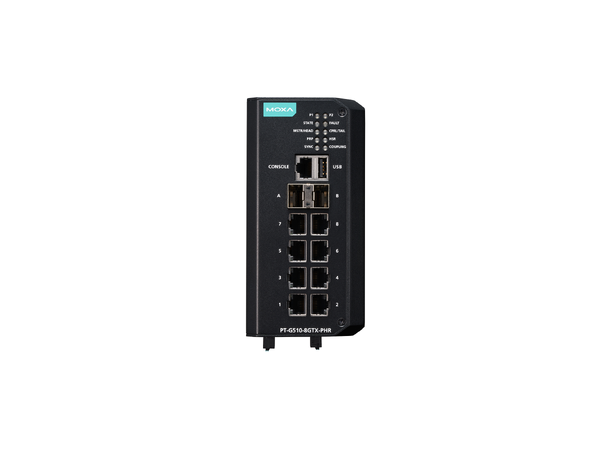

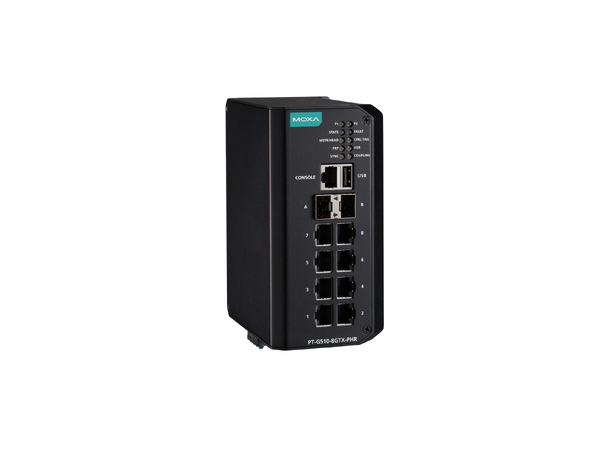

Moxa PT-G510-8GTX-PHR-WV-CT
The Moxa PT-G510-8GTX-PHR-WV-CT is a Layer 2 managed Ethernet switch designed for mission-critical applications in digital substations. It features 8 100/1000BaseT(X) ports, with isolated dual power supply support, making it ideal for robust and reliable network connections.
Key Features
- High-Performance Ports: 8 100/1000BaseT(X) ports.
- Wide Power Input Range: 24/48 VDC (18 to 72 VDC).
- Robust Design: IP30 rating and -40 to 75°C operating temperature.
- Advanced Security: Supports various security protocols including RADIUS, TACACS+, and SSH.
- Network Redundancy: Supports PRP, HSR, MRP, STP, MSTP, and RSTP for maximum network reliability.
- Time Synchronization: IEEE 1588v2 PTP (hardware-based) support.
- Conformal Coating: PCB conformal coating for protection against dust and moisture.
Moxa PT-G510-8GTX-PHR-WV-CT Specifications
Ethernet Interface
- 100/1000BaseT(X) Ports: 8 (RJ45 connector)
Power Parameters
- Input Voltage: 24/48 VDC (18 to 72 VDC)
- Input Current: 1.1 A @ 24-48 VDC
Environmental Limits
- Operating Temperature: -40 to 75°C
- Storage Temperature: -40 to 85°C
- Ambient Relative Humidity: 5% to 95% (non-condensing)
Certifications
- IEC 61850-3
- IEC 62439-3
- EN 55032/35
- CISPR 32
- FCC Part 15B Class A
- IEC 61000-4-2 (ESD: Contact: 8 kV; Air: 15 kV)
- IEC 61000-4-3 (RS: 80 MHz to 1 GHz: 10 V/m)
- IEC 61000-4-4 (EFT: Power: 4 kV; Signal: 4 kV)
- IEC 61000-4-5 (Surge: Power: 4 kV; Signal: 4 kV)
- IEC 61000-4-6 (CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m)
- IEC 61000-4-8 (PFMF)
