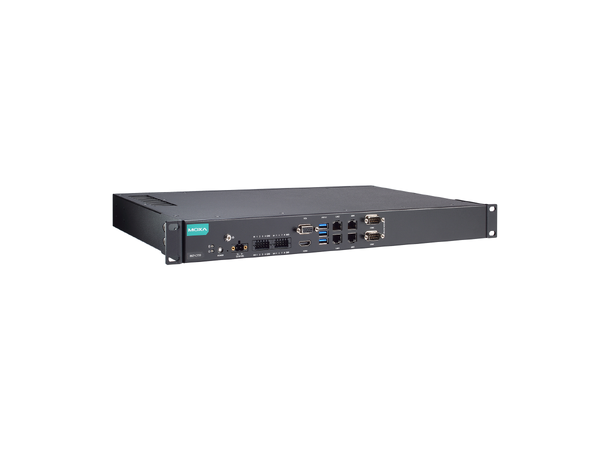

Moxa RKP-C110-C1-T

The Moxa RKP-C110-C1-T is a robust industrial-grade fanless computer designed for a variety of industrial automation applications. It features an Intel® Celeron® 6305E processor and offers multiple connectivity options, including LAN, serial, USB, VGA, and HDMI ports. The computer is built to withstand harsh environments with a wide operating temperature range and a durable design.

Key Features

• Processor: Intel® Celeron® 6305E (Dual core, 4M cache, 1.80 GHz).
• High-Performance Ports: 4 10/100/1000 Mbps Ethernet ports, 2 RS-232/422/485 serial ports, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port.
• Wide Power Input Range: 12/24 VDC.
• Robust Design: Fanless design, -30 to 60°C operating temperature.
• Advanced Security: TPM v2.0 module.
• Easy Configuration: Unified front-panel connectivity design.
• Storage Options: 2 SSD slots with RAID 0/1 support.

Moxa RKP-C110-C1-T Specifications

Ethernet Interface

• 10/100/1000 Mbps Ports: 4 (RJ45 connector)
• Magnetic Isolation Protection: 1.5 kV (built-in)

Serial Interface

• Number of Ports: 2
• Connector: DB9 male
• Standards: RS-232/422/485
• Baudrate: 50 bps to 115.2 kbps

Power Parameters

• Input Voltage: 12/24 VDC
• Power Consumption: 90 W

Environmental Limits

• Operating Temperature: -30 to 60°C (-22 to 140°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5% to 95% (non-condensing)

Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A, BSMI
• EMS:
  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  • IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
  • IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
  • IEC 61000-4-6 CS: 3 V
  • IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
• Safety: UL 62368-1 (CB), BSMI
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-64
• Package Drop Test: ISTA 1A
• Package Vibration Test: ISTA 1A
