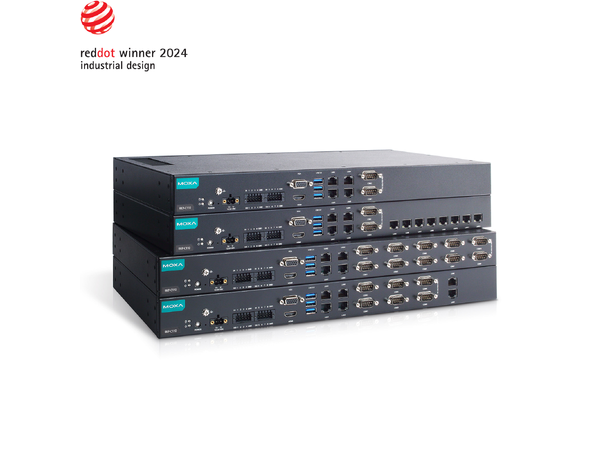

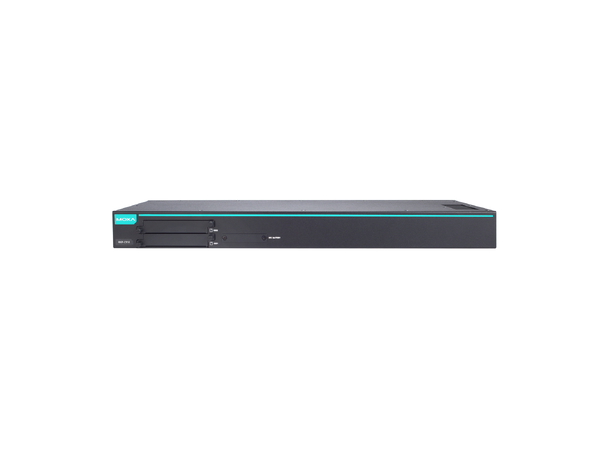

Moxa RKP-C110-C3-2HV-T

The Moxa RKP-C110-C3-2HV-T is a fanless, rackmount x86 industrial computer designed for high-performance automation and edge computing in demanding environments. Powered by an 11th Gen Intel® Core™ i3 processor, it features robust I/O options, dual SSD storage with RAID support, and wide OS compatibility. Its 1U form factor and front-accessible interfaces make it ideal for industrial control, networking, and data processing applications.

Key Features

• Processor: Intel® Core™ i3-1115G4E (dual-core, 4 MB cache, 3.00 GHz, base 2.20 GHz)
• Memory: 8 GB DDR4 pre-installed, expandable up to 32 GB via 1 SODIMM slot
• Storage: 2 x 2.5-inch SSD slots (SATA III), RAID 0/1 support
• Ethernet: 4 x 10/100/1000 Mbps (RJ45)
• Serial Ports: 2 x RS-232/422/485 (DB9 male, software-selectable)
• Digital I/O: 4 x DI, 4 x DO
• USB: Multiple USB ports (exact configuration varies by model)
• Video Output: HDMI and/or DisplayPort (model-dependent)
• Graphics: Intel® Iris® Xe Graphics
• TPM: TPM v2.0
• Power Input: 12/24 VDC and dual 100–240 VAC/VDC options
• Operating Temperature: -30 to 60°C (-22 to 140°F)
• Dimensions: 1U rackmount form factor
• Mounting: Rackmount
• IP Rating: IP20
• Supported OS: Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional, Windows Server 2022 (driver support), Debian 12, Ubuntu 22.04 LTS, RHEL 9
