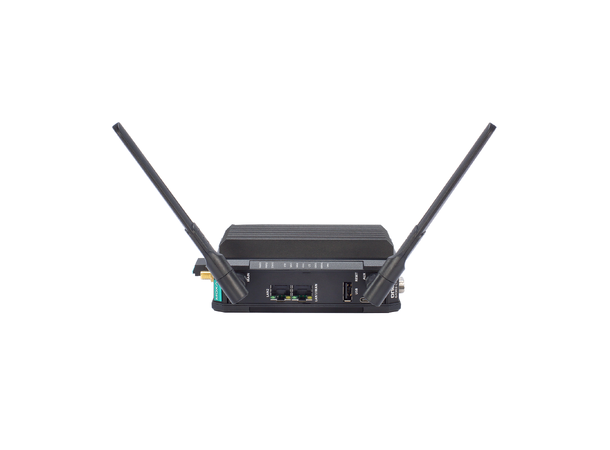

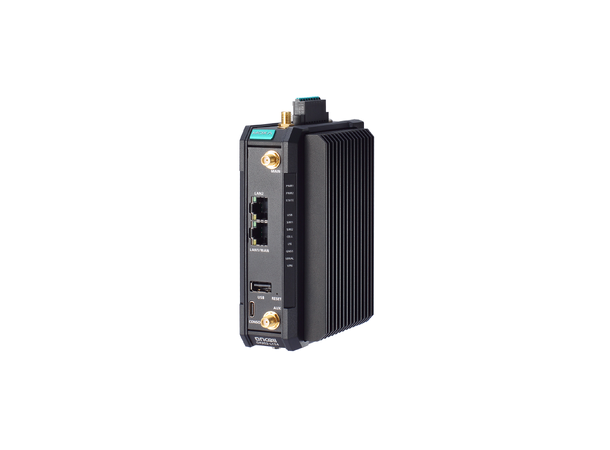

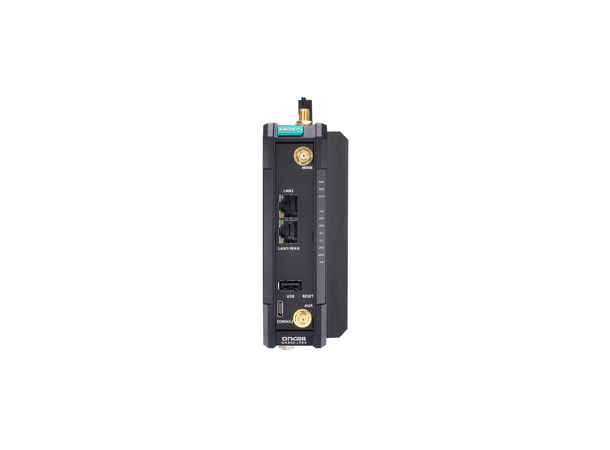

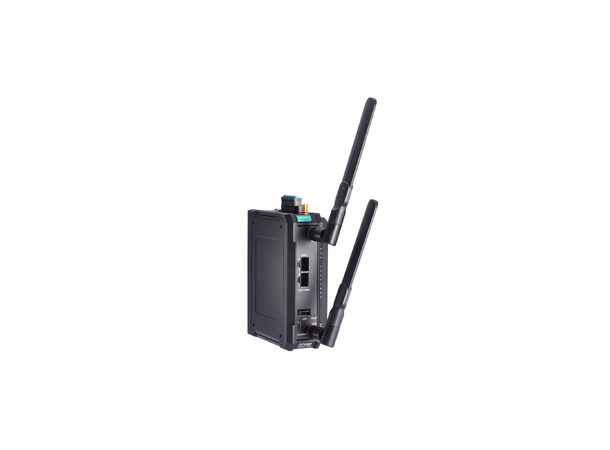

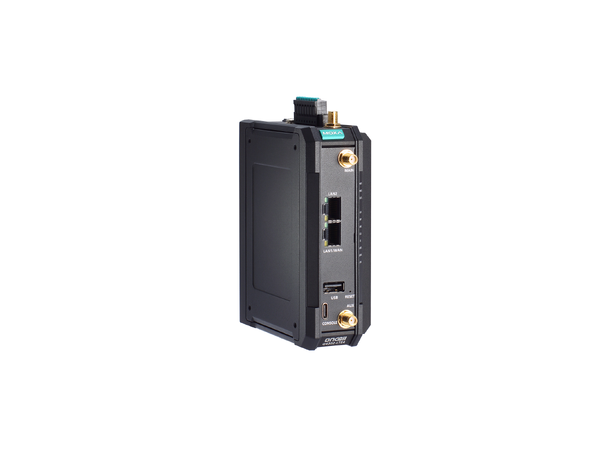

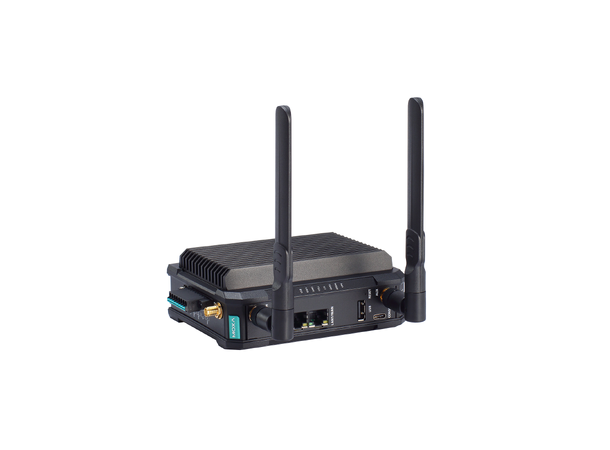

Moxa OnCell G4302-LTE4-EU

The Moxa OnCell G4302-LTE4-EU is a reliable and powerful industrial LTE Cat. 4 cellular router designed for secure and efficient data transfers. It supports global LTE coverage and provides WAN redundancy between cellular and Ethernet interfaces, ensuring minimal downtime and enhanced flexibility. The router is built to withstand harsh environments with a wide operating temperature range and robust design.

Key Features

• Integrated LTE Cat. 4 Module: Supports US/EU/APAC band.
• High-Performance Ports: 2 10/100/1000BaseT(X) RJ45 ports.
• Wide Power Input Range: 12 to 48 VDC.
• Robust Design: -10 to 55°C operating temperature.
• Advanced Security: Secure Boot, multi-layer firewall policies, VPN support.
• Easy Configuration: MXsecurity management software.
• Redundancy: Dual-SIM GuaranLink support.

Moxa OnCell G4302-LTE4-EU Specifications

Ethernet Interface

• 10/100/1000BaseT(X) Ports: 2 (RJ45 connector)
• Magnetic Isolation Protection: 1.5 kV (built-in)

Power Parameters

• Input Voltage: 12 to 48 VDC
• Power Consumption: 66.41 W @ 110 VAC, 67.96 W @ 220 VAC

Environmental Limits

• Operating Temperature: -10 to 55°C (14 to 131°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5% to 95% (non-condensing)

Certifications

• EMC: EN 55032/35, EN 61000-6-2/-6-4
• EMI: CISPR 22, FCC Part 15B Class A
• EMS:
  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  • IEC 61000-4-6 CS: 10 kHz to 150 MHz; Signal: 80 V
  • IEC 61000-4-8: 30 A/m
• Freefall: IEC 60068-2-32
• Hazardous Locations: IECEx, ATEX, Class I Division 2
• Railway: EN 50121-4
• Traffic Control: NEMA TS2
• Road Vehicles: E mark E1
• Radio Frequency: FCC ID N7NWP76B, PTCRB, EN 303 413
• Radio: NCC: CCAH234G0310T1, TELEC: R 003-190014/T D190010003, RCM, KC: R-R-MXA-OnCell-G4302, IC: 2417C-WP76B, UKCA
• Carrier Approvals: Verizon, AT&T
• Cellular Standards: EN 301 489-1/-19 (GPS), EN 301 489-1/-52 (WCDMA/LTE), EN 301 511, EN 301908-1/-2/-13
• Safety: UL 62368-1, EN 62368-1
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6
