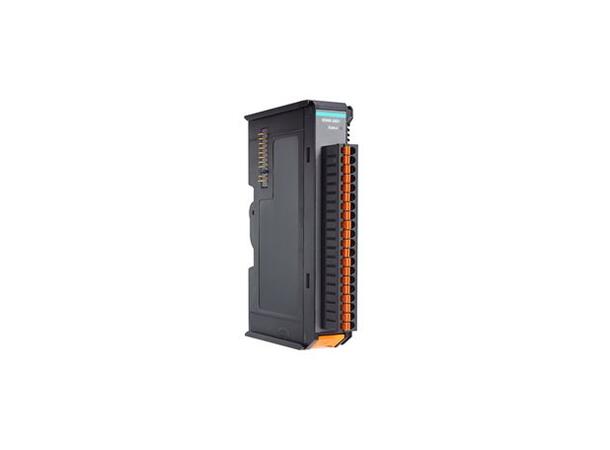

Moxa 45MR-1600-T

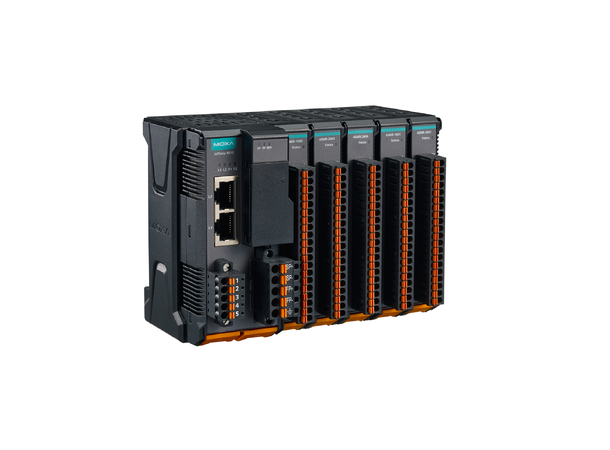

The Moxa 45MR-1600-T is a rugged digital input module from the ioThinx 4500 Series, designed for industrial automation and IIoT applications. It features 16 digital input channels with support for both dry and wet contact types, high isolation, and a wide operating temperature range, making it ideal for harsh environments and reliable data acquisition.

Key Features

• Digital Inputs: 16 channels, supports dry and wet contact (PNP)
• Input Voltage: 24 VDC
• Input Type: DI or event counter (first 4 channels only)
• Counter Frequency: 1 kHz
• Isolation: 3k VDC or 2k Vrms
• Connector: Spring-type Euroblock terminal
• Power Consumption: 59.4 mA @ 3.3 VDC (system), 25.3 mA @ 24 VDC (field)
• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Dimensions: 19.5 x 99 x 60.5 mm
• Installation: DIN-rail mounting
• Certifications: UL 61010-2-201, ATEX, Class I Division 2, RoHS, WEEE
• MTBF: 661,247 hours (Telcordia SR332)
• Warranty: 5 years
