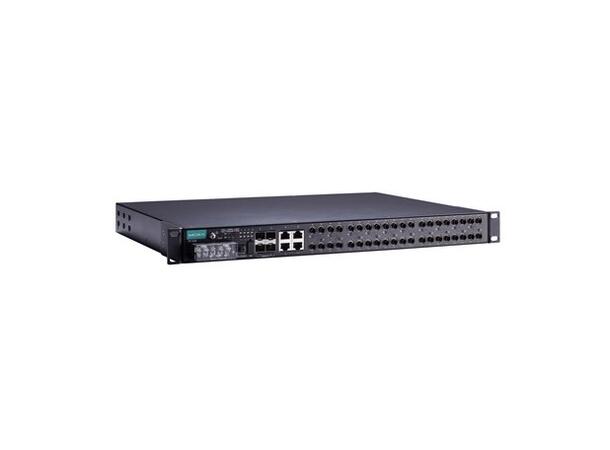

Moxa PT-7528-8MST-16TX-4GSFP-WV-WV

The Moxa PT-7528-8MST-16TX-4GSFP-WV-WV is an IEC 61850-3 certified rackmount Ethernet switch with modular flexibility. It includes 8 100BaseFX “MST” fiber ports (ST connectors), 16 10/100BaseT(X) RJ45 ports, and 4 Gigabit SFP uplink slots. It supports dual 18-72 VDC isolated power and operates in harsh environments from -40 °C to 85 °C.

Key Features

• Fiber Ports: 8 × 100BaseFX (ST multimode, MST type)
• Copper Ports: 16 × 10/100BaseT(X) RJ45
• SFP Uplsink Ports: 4 × 1000BaseSFP
• Dual Isolated Power: 18–72 VDC input
• Operating Temperature: -40 °C to 85 °C (cold start: ? 100 VAC at -40 °C)
• Switching Capacity: 12.8 Gbps; Forwarding Rate: 12.8 Gbps
• MAC Table: 16K entries; VLAN: up to 256 VLANs
• Software Features: VLAN, Spanning Tree (MSTP/RSTP), LACP, IGMP snooping, SNMP, HTTP/HTTPS/SSH, ACLs, LLDP
• Alarm Contact: Relay output 3 A at 30 VDC / 240 VAC
• Physical: 440 × 44 × 325 mm; Weight: ~4,900 g; Enclosure: IP40 rackmount
