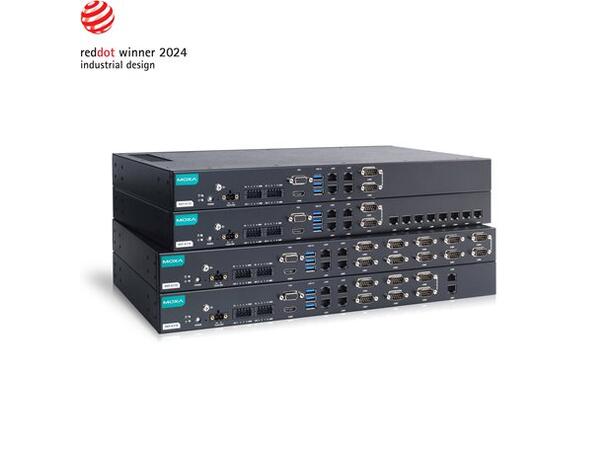

Moxa RKP-A110-E2-T-Win10

The Moxa RKP-A110-E2-T-Win10 is a rugged, fanless 1U rackmount industrial computer pre-installed with Windows 10 IoT Enterprise LTSC 2021. Designed for automation, energy, and transportation applications, it features an Intel Atom® x6211E processor and front-access I/O for easy integration. With TPM 2.0 security, wide temperature tolerance, and industrial-grade reliability, it ensures dependable operation in harsh environments.

Key Features

• Processor: Intel Atom® x6211E (Dual-core, 1.5M cache, 1.30 GHz)
• Memory: 8 GB DDR4 pre-installed (expandable up to 32 GB)
• Storage: 2 x 2.5" SATAIII SSD slots, 64 GB SSD pre-installed
• LAN Ports: 4 x 10/100/1000 Mbps RJ45
• Serial Ports: 2 x RS-232/422/485 (DB9 male, software selectable)
• USB Ports: 3 x USB 3.0 (Type-A)
• Digital I/O: 8 digital inputs, 8 digital outputs
• Video Output: 1 x HDMI 2.0b, 1 x VGA
• TPM: TPM v2.0 for hardware security
• Power Input: 12/24 VDC via screw-fastened Euroblock terminal
• Power Consumption: Max. 50 W
• Operating Temperature: -30 to 60°C
• Storage Temperature: -40 to 75°C
• Dimensions: 440 x 230 x 43.6 mm
• Weight: Approx. 3.3 kg
• Certifications: EN 55032/35, UL 62368-1, IEC 61000-4-x, IEC 60068-2-x
• MTBF: 465,664 hours (Telcordia)
• Warranty: 3 years
