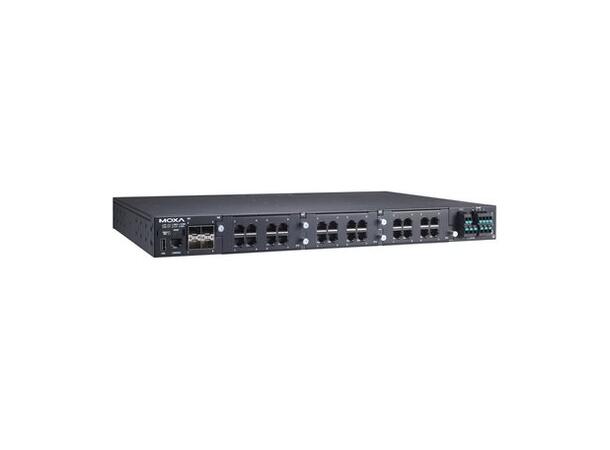

Moxa RKS-G4028-4GS-LV-T

The Moxa RKS-G4028-4GS-LV-T is a modular managed Ethernet switch (Layer 2) designed for industrial rackmount use. It includes 4 100/1000BaseSFP ports, 3 slots for expansion modules, a single isolated 24/48 VDC power supply, and operates reliably between -40 C and 75 C.

Key Features

• 4 × 100/1000BaseSFP slots
• 3 module slots for interface expansion (modules like 8-port/6-port Gigabit RJ45, SFP, FX fiber available)
• Input power: isolated 24/48 VDC
• Alarm contact: 1 relay output (2 A @ 24 VDC)
• Supports standards: Spanning Tree (STP/RSTP/MSTP), VLAN tagging (802.1Q), 802.1X authentication, LACP, flow control
• Ethernet software features: link-aggregation, IGMP snooping, LLDP, IPv4/IPv6, SNMP v1/v2c/v3, HTTPS/HTTP, SSH, syslog etc.
• Jumbo frame size: 9.216 KB; MAC table size: 16 K entries; supports up to 256 VLANs
• IP30 rackmount enclosure; weight approx 4900 g; dimensions 440 × 44 × 300 mm
• Operating temperature: -40 C to 75 C; storage temperature: -40 C to 85 C
