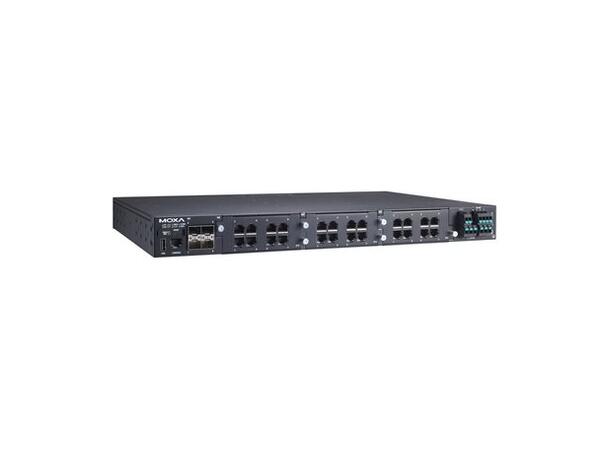

Moxa RKS-G4028-4GT-LV-T

The Moxa RKS-G4028-4GT-LV-T is a modular managed Ethernet switch designed for industrial rackmount use. It features 4 Gigabit RJ45 ports, 3 slots for interface modules, an isolated 24/48 VDC power supply, and operates reliably from -40 C to 75 C.

Key Features

• 4 × 10/100/1000BaseT(X) RJ45 ports
• 3 module slots for expansion with modules such as RJ45, SFP, or fiber interfaces
• Input Power: isolated 24/48 VDC
• Alarm contact: 1 relay output (2 A @ 24 VDC)
• Standards: VLAN (IEEE 802.1Q), Spanning Tree (STP/RSTP/MSTP), IEEE 802.1X authentication, Link Aggregation (LACP), flow control
• Management: SNMP v1/v2c/v3, web GUI, SSH, HTTPS, LLDP, etc.
• IP30 rackmount enclosure
• Operating temperature: -40 C to 75 C
• Physical size: 440 × 44 × 296 mm; Weight: approx 4900 g
