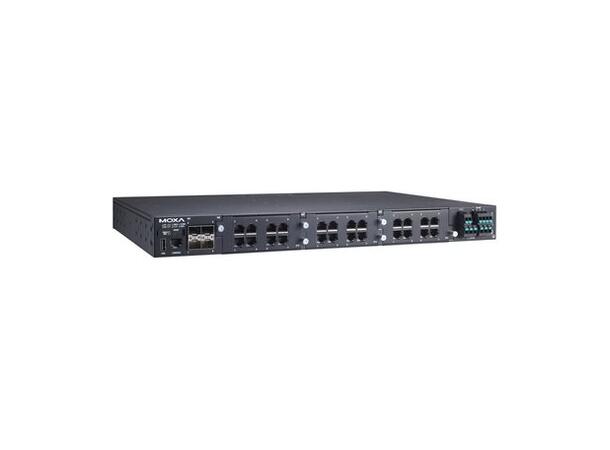

Moxa RKS-G4028-L3-4GS-HV-T
The Moxa RKS-G4028-L3-4GS-HV-T is a high-performance, modular Layer 3 managed Ethernet switch designed for mission-critical industrial applications. It features 4 built-in 100/1000BaseSFP ports, 3 expansion slots for flexible module configurations, and a single isolated power supply supporting 110/220 VAC/VDC. With advanced Layer 3 routing, IEEE 1588v2 PTP support, and IEC 62443-4-2 cybersecurity compliance, it ensures secure, reliable, and precise network operations in harsh environments.
Key Features
- Ports: 4 x 100/1000BaseSFP + up to 24 modular ports via 3 expansion slots
- Expansion Modules: Supports RM-G4000 series modules (e.g., 8GTX, 8PoE, 4MSC2TX)
- Layer 3 Routing: Static Routing, OSPF, VRRP, PIM-DM, PIM-SM
- Redundancy: Turbo Ring, Turbo Chain, RSTP, MSTP, MRP, VRRP
- Time Sync: IEEE 1588v2 PTP (hardware-based), NTP/SNTP
- Security: IEC 62443-4-2 Level 2, ACL, 802.1X, RADIUS, TACACS+, MAC filtering, Secure Boot
- Management: Web GUI, CLI, SNMPv1/v2c/v3, RMON, Syslog, MXstudio
- PoE Support: Optional via PoE modules, up to 90 W per port (IEEE 802.3bt)
- Power Input: Single isolated 110/220 VAC/VDC (88–300 VDC, 85–264 VAC)
- Power Consumption: Max. 64.1 W
- Operating Temperature: -40 to 75°C
- Certifications: IEC 61850-3, IEEE 1613, EN 50121-4, EN 62368-1, UL 61010
- Dimensions: 440 x 44 x 296 mm (1U rackmount)
- Weight: 4.9 kg
- MTBF: 529,925 hours (Telcordia)
- Warranty: 5 years
