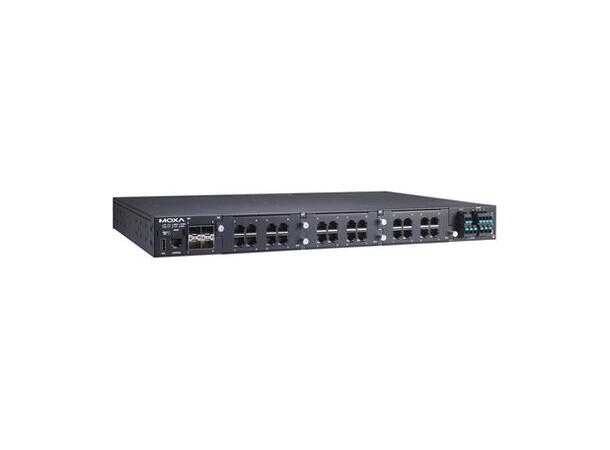

Moxa RKS-G4028-L3-PoE-4GS-HV-T

The Moxa RKS-G4028-L3-PoE-4GS-HV-T is a modular Layer 3 managed Ethernet switch with PoE support, designed for harsh industrial environments. It features four 100/1000BaseSFP ports, three slots for expansion modules, an isolated power supply (HV range), and operates from -40 C to 75 C.

Key Features

• 4 × 100/1000BaseSFP ports
• 3 module slots for optional Ethernet interface modules
• Supports PoE via external PoE module; total PoE power budget 300 W
• Power Input: 110/220 VAC or VDC; PoE subsystem uses 48 VDC
• Operating temperature: -40 C to 75 C
• IP rating: IP30 enclosure; rack mounting
• Standards: IEEE 802.1Q VLANs, 802.1X authentication, STP/RSTP/MSTP, LACP, etc.
• Security: HTTPS, SSH, ACLs, SNMPv3, redundancy protocols, etc.
• Physical: Dimensions ~ 440 × 44 × 300 mm; Weight ~ 5000 g
