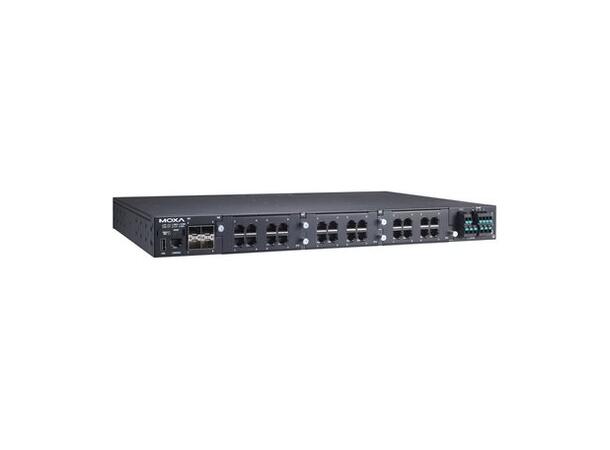

Moxa RKS-G4028-PoE-4GS-2LV-T

The Moxa RKS-G4028-PoE-4GS-2LV-T is a modular, Layer 2 managed Ethernet switch with PoE support, built for rugged industrial environments. It provides 4 SFP uplink ports, three optional module slots for additional Ethernet interface modules, isolated dual power supplies (24/48 VDC), and operates reliably from -40 C to 75 C.

Key Features

• 4 × 100/1000BaseSFP uplink ports
• 3 module slots for optional Ethernet modules (e.g. RJ45, PoE, fiber modules)
• PoE Ethernet module supported, with total PoE power budget of 300 W
• Max PoE output per port: IEEE 802.3af/at/bt standards
• Alarm contact: 1 relay output (2 A @ 24 VDC)
• Input power: 24/48 VDC (dual isolated power supplies)
• Operating temperature: -40 C to 75 C
• IP rating: IP30 enclosure; designed for rack-mount installation
• Dimensions: approx 440 × 44 × 296 mm; weight approx 5300 g
• Environmental specs: 5-95% relative humidity (non-condensing); storage temperature -40 C to 85 C
