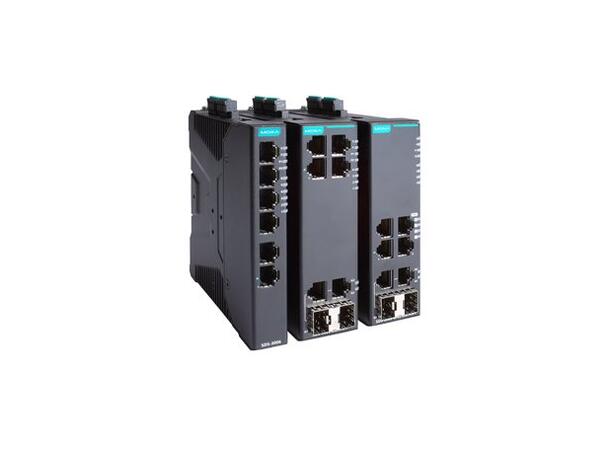

Moxa SDS-3006-T

The Moxa SDS-3006-T is a compact industrial Layer 2 smart Ethernet switch with 6 Fast Ethernet ports, designed for automation and SCADA/HMI integration. It features robust performance in harsh environments, a wide operating temperature range, and advanced management and security features for reliable industrial networking.

Key Features

• Ethernet Ports: 6 x 10/100BaseT(X) RJ45 connectors
• Industrial Protocols: PROFINET, EtherNet/IP, Modbus TCP, MECHATROLINK-4
• Redundancy: RSTP, STP, MRP (Client)
• Security: HTTPS/SSL, SNMPv3, Port Lock, Broadcast storm protection, IEC 62443-based features
• Management: Web GUI (multi-language), SNMPv1/v2c/v3, Syslog, LLDP, RMON, DHCP Client, MXstudio support
• VLAN Support: IEEE 802.1Q, up to 8 VLANs, VID range 1–4094
• QoS: IEEE 802.1p for Class of Service
• Time Sync: NTP Server/Client, SNTP
• Rotary DIP Switch: Profile-based configuration for industrial protocols
• Digital I/O: 1 digital input, 1 relay output (1 A @ 24 VDC)
• USB Port: Type A for ABC-02 configuration backup/restore
• Power Input: Dual redundant 12–48 VDC (operating range: 9.6–60 VDC)
• Housing: Metal, IP40-rated
• Mounting: DIN-rail or wall (optional kit)
• Operating Temperature: -40 to 75°C (SDS-3006-T)
• Certifications: EN 55032/35, EN 61000-6-2/-6-4, UL 61010-2-201, EN IEC 62368-1
• Warranty: 5 years
