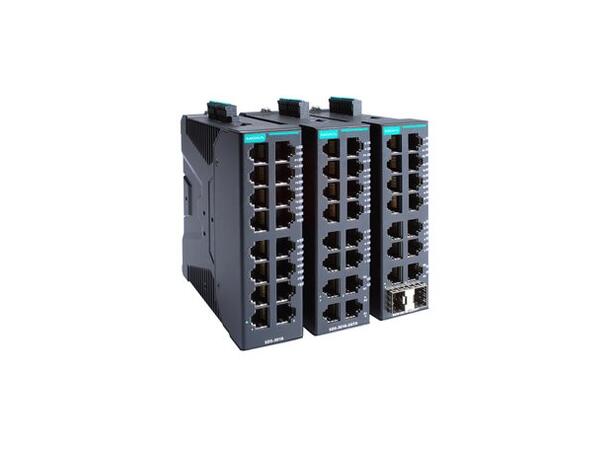

Moxa SDS-3016-2GTX

The Moxa SDS-3016-2GTX is a compact, industrial Layer 2 smart Ethernet switch designed for automation and SCADA/HMI integration. It features 14 Fast Ethernet ports and 2 Gigabit uplink ports, supports multiple industrial protocols, and delivers robust performance in harsh environments with a wide operating temperature range and rugged metal housing.

Key Features

• Ethernet Ports: 14 x 10/100BaseT(X) RJ45, 2 x 10/100/1000BaseT(X) RJ45
• Industrial Protocols: PROFINET, EtherNet/IP, Modbus TCP, MECHATROLINK-4
• Redundancy: RSTP, STP, MRP (Client)
• Security: HTTPS/SSL, SNMPv3, Port Lock, Broadcast storm protection, IEC 62443-based features
• Management: Web GUI (multi-language), SNMPv1/v2c/v3, Syslog, LLDP, RMON, DHCP Client, MXstudio support
• VLAN Support: IEEE 802.1Q, up to 8 VLANs, VID range 1–4094
• QoS: IEEE 802.1p for Class of Service
• Time Sync: NTP Server/Client, SNTP
• Rotary DIP Switch: Profile-based configuration for industrial protocols
• Digital I/O: 1 digital input, 1 relay output (1 A @ 24 VDC)
• USB Port: Type A for ABC-02 configuration backup/restore
• Power Input: Dual redundant 12–48 VDC (operating range: 9.6–60 VDC)
• Power Consumption: Max. 7.76 W
• Housing: Metal, IP40-rated
• Mounting: DIN-rail or wall (optional kit)
• Dimensions: 36 x 135 x 111 mm
• Weight: 772 g
• Operating Temperature: -40 to 75°C (T models)
• Certifications: EN 55032/35, EN 61000-6-2/-6-4, UL 61010-2-201, EN IEC 62368-1
• MTBF: 2,982,863 hours (Telcordia)
• Warranty: 5 years
