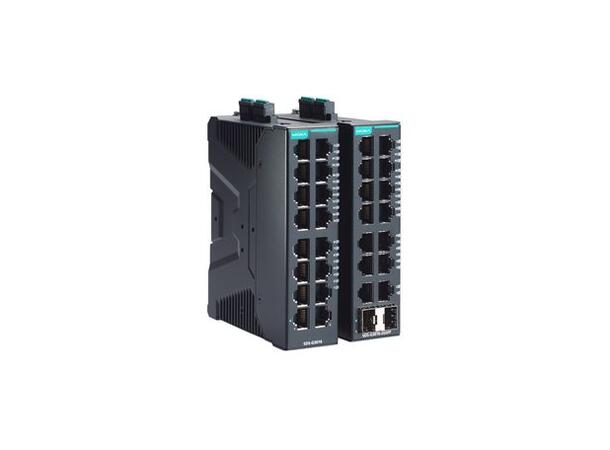

Moxa SDS-G3016

The Moxa SDS-G3016 is a compact, full-Gigabit Layer 2 smart Ethernet switch designed for industrial use. It offers 16 RJ45 Gigabit ports (with model variants adding SFP slots), dual power inputs, advanced management features, and supports industrial protocols for easy integration into automation and control systems.

Key Features

• Ports: 16 × 10/100/1000BaseT(X) RJ45 (standard models); some models include 2 SFP slots
• Industrial Protocol Support: EtherNet/IP; PROFINET; Modbus TCP
• Management: Web GUI (multi-language), SNMP v1/v2c/v3, port mirroring, VLAN tagging, RSTP/STP, MRP redundancy
• Security Features: HTTPS/SSL; SNMPv3; unused port lock; broadcast storm protection
• Profile-based operation via rotary DIP switch (e.g. select protocol profile without GUI)
• Input Voltage: 12-48 VDC, dual redundant inputs
• Operating Temperature: standard models -10 C to 60 C; wide temperature models -40 C to 75 C
• Power Consumption: ~12.95 W (models without SFP) / ~15.49 W (with SFP slots)
• Housing & Protection: metal case, IP40 rated; supports DIN-rail and wall mounting
• Size & Weight: about 36 × 135 × 111 mm; weight ~772 g (standard) / ~796 g (with 2 SFP slots)
