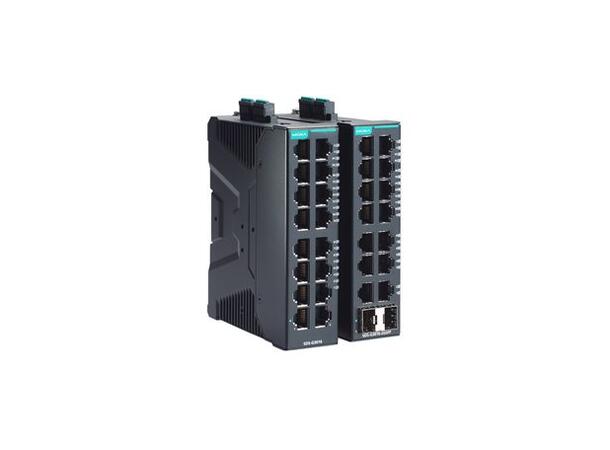

Moxa SDS-G3016-T

The Moxa SDS-G3016-T is a compact, full Gigabit Layer 2 smart Ethernet switch designed for industrial automation and SCADA/HMI integration. With 16 Gigabit RJ45 ports, support for multiple industrial protocols, and a rugged design rated for -40 to 75°C operation, it simplifies configuration, monitoring, and maintenance in harsh environments.

Key Features

• Ethernet Ports: 16 x 10/100/1000BaseT(X) RJ45 connectors
• Industrial Protocols: PROFINET, EtherNet/IP, Modbus TCP, MECHATROLINK-4
• Redundancy: RSTP, STP, MRP
• Security: HTTPS/SSL, SNMPv3, Port Lock, Broadcast storm protection
• Management: Web GUI, SNMPv1/v2c/v3, Syslog, LLDP, RMON, DHCP Client
• VLAN Support: IEEE 802.1Q, up to 8 VLANs, VID range 1–4094
• QoS: IEEE 802.1p for Class of Service
• Time Sync: NTP Server/Client, SNTP
• Rotary DIP Switch: Profile-based configuration for industrial protocols
• Power Input: Dual redundant 12–48 VDC (operating range: 9.6–60 VDC)
• Power Consumption: Max. 12.95 W
• Digital I/O: 1 digital input, 1 relay output (1 A @ 24 VDC)
• USB Port: Type A for ABC-02 configuration backup
• Mounting: DIN-rail or wall (optional kit)
• Housing: Metal, IP40-rated
• Dimensions: 36 x 135 x 111 mm
• Weight: 772 g
• Operating Temperature: -40 to 75°C
• Certifications: EN 50121-4, EN 61000-6-2/-6-4, UL 61010-2-201, IEC 62368-1
• MTBF: 2,982,863 hours (Telcordia)
• Warranty: 5 years
