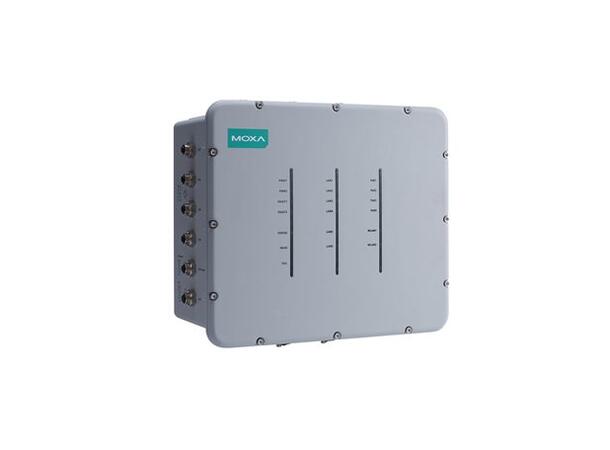

Moxa TAP-323-EU-CT-T

The Moxa TAP-323-EU-CT-T is a rugged railway trackside wireless access point designed for train-to-ground communication. Featuring dual-band 802.11n radios, IP68-rated housing, and conformal coating, it ensures reliable operation in harsh outdoor environments. With advanced Turbo Roaming and AeroLink Protection, it supports seamless connectivity for applications like CBTC and onboard CCTV.

Key Features

• Wireless Standards: IEEE 802.11a/b/g/n, 802.11i
• Radios: Dual-band (2.4 GHz and 5 GHz)
• Channel Bandwidth: 20 MHz, 40 MHz
• Frequency Bands (EU): 2.412–2.472 GHz (13 channels), 5.180–5.700 GHz (19 channels)
• Turbo Roaming: Controller-based, < 50 ms handover time
• Wireless Security: WPA/WPA2-Enterprise, WPA/WPA2-Personal, IEEE 802.1X/RADIUS, TKIP, AES
• Ethernet Ports: 4 x 10/100BaseT(X) M12 D-coded PoE ports, 2 x 1000BaseSFP slots
• PoE Support: IEEE 802.3af, up to 4 devices
• Power Input: Dual redundant 110/220 VAC/VDC (85–264 VAC, 88–300 VDC)
• Power Consumption: Max. 85 W
• Management: SNMPv1/v2c/v3, Web Console, Telnet, SSH, DHCP, Syslog
• Firewall & NAT: IP/MAC/Port filtering, port forwarding
• USB Interface: M12 A-coded for ABC-02 storage
• Console Port: USB-M12 (M12 B-coded)
• Housing: Metal, IP68-rated, conformal coated PCB
• Operating Temperature: -40 to 75°C
• Dimensions: 324 x 279 x 156 mm
• Weight: 10 kg
• Certifications: EN 50155, EN 50121-4, EN 45545-2, FCC, UL, IEC 60950-1
• MTBF: 290,937 hours (Telcordia SR332)
• Warranty: 5 years
