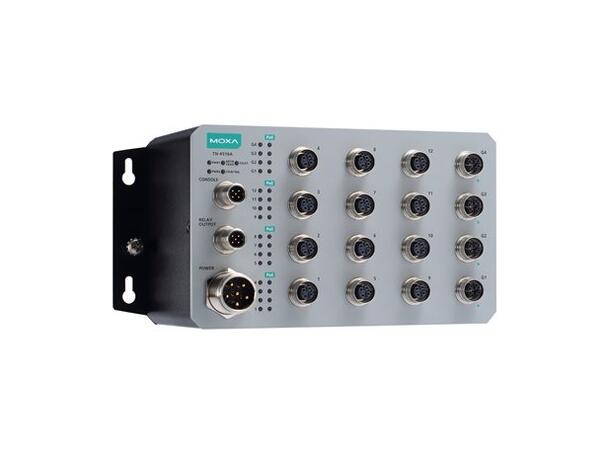

Moxa TN-4516A-12PoE-4GPoE-WV-T
The Moxa TN-4516A-12PoE-4GPoE-WV-T is a rugged Layer 2 managed Ethernet switch designed for railway and mission-critical industrial applications. It features 12 Fast Ethernet PoE+ ports and 4 Gigabit PoE+ ports with bypass relay functionality, all using robust M12 connectors. With dual redundant power inputs, conformal coating, and compliance to EN 50155 standards, this switch ensures reliable performance in harsh environments.
Key Features
- Ethernet Ports: 12 x 10/100BaseT(X) M12 D-coded PoE+ ports, 4 x 10/100/1000BaseT(X) M12 X-coded PoE+ ports with bypass relay
- PoE Standard: IEEE 802.3af/at, up to 30 W per port, 120 W total power budget
- Power Input: Dual redundant 24 to 110 VDC (16.8 to 137.5 VDC supported)
- Operating Temperature: -40 to 75°C
- Certifications: EN 50155, EN 50121-4, EN 45545-2, UL 62368-1, IEC 62368-1, FCC, RoHS
- Redundancy: Turbo Ring v2, Turbo Chain, STP/RSTP/MSTP, LACP
- Security: IEEE 802.1X, HTTPS/SSL, SSH, TACACS+, RADIUS, ACL, Broadcast storm protection
- Management: Web GUI, CLI (Serial/Telnet/SSH), SNMPv1/v2c/v3, Windows Utility
- VLAN Support: IEEE 802.1Q, GVRP, Port-based VLAN
- QoS: IEEE 802.1p/1Q, ToS/DiffServ
- Industrial Protocols: Modbus TCP, EtherNet/IP
- LED Indicators: PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet, PoE
- Mounting: Wall mounting
- Housing: Metal, IP42-rated with conformal coating
- Dimensions: 229.6 x 132 x 122.3 mm
- Weight: 2.090 kg
- MTBF: 459,971 hours (Telcordia SR332)
- Warranty: 5 years
