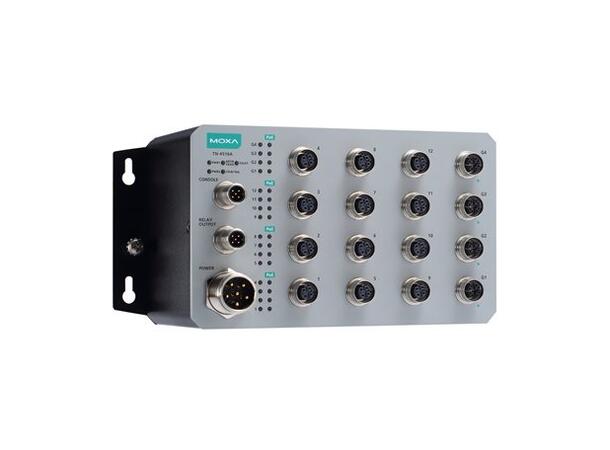

Moxa TN-4516A-4GTXBP-WV-T

The Moxa TN-4516A-4GTXBP-WV-T is an EN 50155 certified Layer 2 managed Ethernet switch designed for railway and industrial applications. It features 12 Fast Ethernet PoE+ ports, 4 Gigabit Ethernet ports with bypass relay functionality, dual wide-voltage DC power input, and operates in harsh environments from -40°C to 75°C.

Key Features

• 12 × 10/100BaseT(X) PoE+ ports with M12 D-coded connectors
• 4 × 10/100/1000BaseT(X) ports with M12 X-coded connectors and bypass relay functionality
• Dual input power supply: 24–110 VDC
• Alarm contact: 2 relay outputs via M12 A-coded 5-pin male connector (1 A @ 30 VDC)
• Operating temperature: -40°C to 75°C
• Housing: Metal body; IP42 rating; conformal coating (WV version)
• Dimensions: 347.8 × 132 × 122.3 mm; Weight: approx 2,388 g
