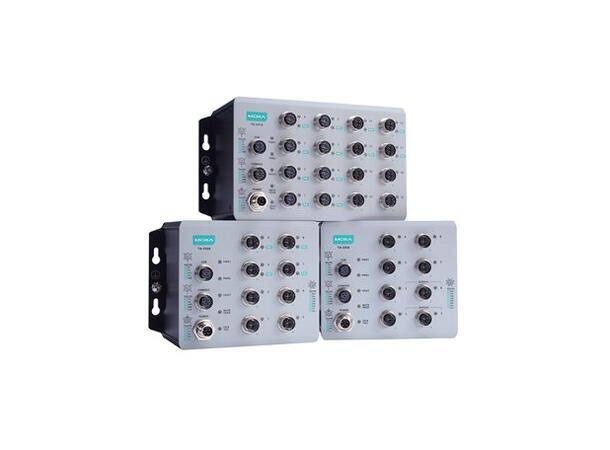

Moxa TN-4916-ETBN-4GTXBP-WV-CT-T

The Moxa TN-4916-ETBN-4GTXBP-WV-CT-T is a high-performance EN 50155-compliant secure router designed for railway backbone networks. It features 12 Fast Ethernet M12 D-coded ports and 4 Gigabit Ethernet M12 X-coded ports with bypass relay. With advanced routing, NAT, and cybersecurity features, this router ensures reliable and secure data communication in harsh environments.

Key Features

• Ethernet Ports: 12 x 10/100BaseT(X) M12 D-coded, 4 x 100/1000BaseT(X) M12 X-coded with bypass relay
• Routing Performance: Up to 450,000 FPS (pure routing)
• Firewall Throughput: Up to 350,000 packets per second
• Security: Secure Boot, IPsec, L2TP, RADIUS, DoS/DDoS protection, IEC 62443-4-2 compliance
• VPN Support: Up to 250 concurrent IPsec VPN tunnels
• Management: Web GUI (HTTP/HTTPS), CLI (Serial/Telnet/SSH), SNMPv1/v2c/v3, Windows Utility
• Routing Protocols: RIPV1/V2, OSPF, VRRP, Static Route
• Redundancy: Turbo Ring v2, STP/RSTP, Port Trunking
• Industrial Protocols: Modbus TCP, EtherNet/IP, PROFINET, IEC 60870-104, TRDP
• Power Input: Dual redundant 24 to 110 VDC (16.8 to 137.5 VDC supported)
• Operating Temperature: -40 to 70°C
• Housing: Metal, IP40-rated, conformal coated PCB
• Dimensions: 206 x 115 x 100 mm
• Weight: 1990 g
• Certifications: EN 50155, EN 50121-4, EN 45545-2, IEC 62368, UL 62368, FCC, RoHS
• MTBF: 472,578 hours (Telcordia SR332 Issue 2)
• Warranty: 5 years
