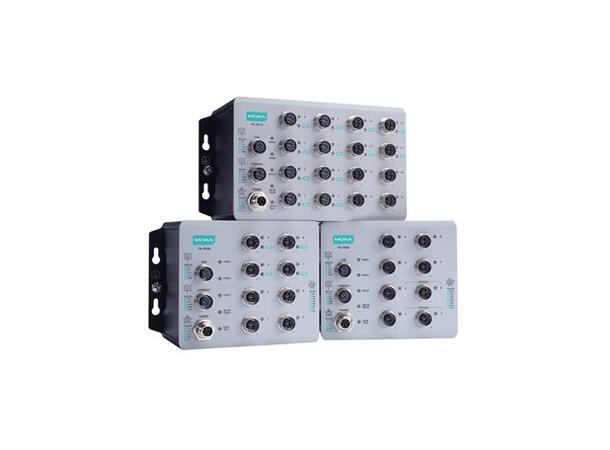

Moxa TN-4916-ETBN-F-4GTXBP-WV-CT-T

The Moxa TN-4916-ETBN-F-4GTXBP-WV-CT-T is a high-performance industrial secure firewall router designed for railway backbone networks. It features 4 Gigabit Ethernet ports with bypass relay and supports advanced routing, firewall, and cybersecurity functions. Compliant with EN 50155 and IEC 62443-4-2 standards, this rugged router ensures reliable operation in harsh environments.

Key Features

• Ethernet Ports: 4 x 10/100/1000BaseT(X) M12 X-coded connectors with bypass relay
• Routing Performance: Up to 450,000 FPS (pure routing)
• Firewall Throughput: Up to 350,000 packets per second
• Security: Secure Boot, IPsec, L2TP, RADIUS, TACACS+, SSH, HTTPS/SSL
• VPN Support: Up to 250 concurrent IPsec VPN tunnels with AES-256 encryption
• Redundancy: Turbo Ring v2, RSTP, STP, VRRP
• Management: Web GUI, CLI (Serial/Telnet/SSH), SNMPv1/v2c/v3, Windows Utility
• Industrial Protocols: Modbus TCP, EtherNet/IP, PROFINET, IEC 60870-104, TRDP
• Power Input: Dual redundant 24 to 110 VDC (16.8 to 137.5 VDC supported)
• Operating Temperature: -40 to 70°C
• Certifications: EN 50155, EN 50121-4, EN 45545-2, IEC 62443-4-2, UL, CE, FCC
• Housing: Metal, IP40-rated with conformal coating
• Mounting: Wall mounting
• Dimensions: 206 x 115 x 100 mm
• Weight: 1990 g
• MTBF: 472,578 hours (Telcordia SR332)
• Warranty: 5 years
