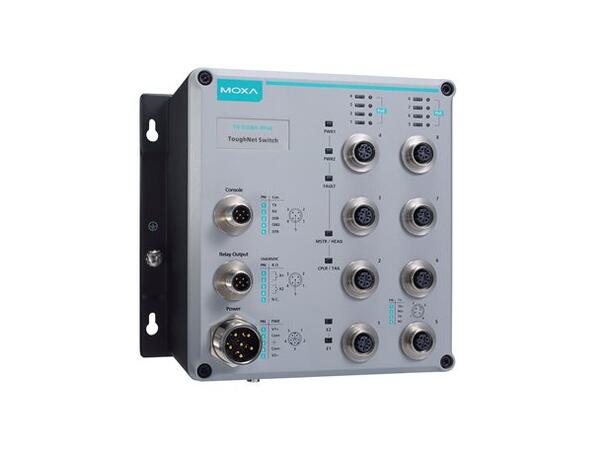

Moxa TN-5308A-WV-T

The Moxa TN-5308A-WV-T is an unmanaged Ethernet switch designed for railway and mission-critical industrial applications. It features 8 Fast Ethernet M12 D-coded ports and supports a wide power input range of 24 to 110 VDC. Built to comply with EN 50155 standards, it ensures reliable performance in harsh environments with vibration, shock, and extreme temperatures.

Key Features

• Ethernet Ports: 8 x 10/100BaseT(X) M12 D-coded connectors
• Power Input: Single input, 24 to 110 VDC (16.8 to 137.5 VDC supported)
• Operating Temperature: -40 to 70°C
• Certifications: EN 50155, EN 50121-4, EN 45545-2, UL, CE, FCC
• Protection: Overload current and reverse polarity protection
• LED Indicators: PWR, Ethernet ports
• Mounting: Wall or optional DIN-rail kit
• Housing: Metal, IP54-rated
• Dimensions: 62.4 x 190.4 x 37.5 mm
• Weight: 455 g
