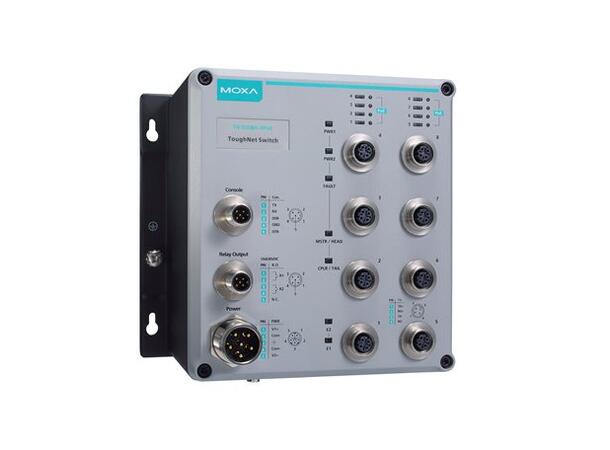

Moxa TN-5508A-8PoE-WV-T
The Moxa TN-5508A-8PoE-WV-T is a rugged Layer 2 managed Ethernet switch designed for railway and mission-critical industrial applications. It features 8 Fast Ethernet M12 ports with IEEE 802.3at PoE+ support, delivering up to 30 W per port and a total power budget of 120 W. With compliance to EN 50155 standards, dual redundant power inputs, and a wide operating temperature range, this switch ensures reliable performance in harsh environments.
Key Features
- Ethernet Ports: 8 x 10/100BaseT(X) M12 D-coded connectors with PoE+
- PoE Standard: IEEE 802.3af/at, up to 30 W per port, 120 W total budget
- Power Input: Dual redundant 24 to 110 VDC (16.8 to 137.5 VDC supported)
- Operating Temperature: -40 to 75°C
- Certifications: EN 50155, EN 50121-4, EN 45545-2, UL, CE, FCC, IEC 61000 series
- Redundancy: Turbo Ring v1/v2, Turbo Chain, STP/RSTP/MSTP, LACP
- Security: IEEE 802.1X, HTTPS/SSL, SSH, TACACS+, RADIUS, Port Lock
- Management: Web GUI, CLI (Serial/Telnet/SSH), SNMPv1/v2c/v3, Windows Utility
- VLAN Support: IEEE 802.1Q, GVRP, Port-based VLAN
- QoS: IEEE 802.1p/1Q, ToS/DiffServ
- Industrial Protocols: Modbus TCP, EtherNet/IP
- LED Indicators: STATE, PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet, PoE
- Mounting: Panel or optional DIN-rail kit
- Housing: Metal, IP54-rated
- Dimensions: 185 x 176.2 x 117.2 mm
- Weight: 2.383 kg
