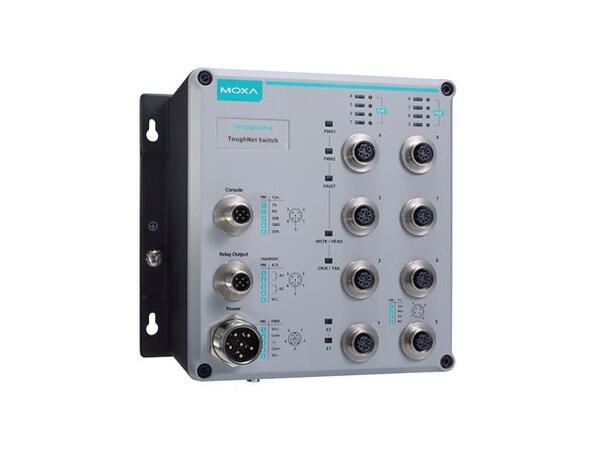

Moxa TN-5508A-WV-T

The Moxa TN-5508A-WV-T is a rugged Layer 2 managed Ethernet switch designed for railway and mission-critical industrial applications. It features 8 Fast Ethernet M12 ports and supports a wide power input range of 24 to 110 VDC. Built to comply with EN 50155 standards, it ensures reliable performance in harsh environments with vibration, shock, and extreme temperatures.

Key Features

• Ethernet Ports: 8 x 10/100BaseT(X) M12 D-coded connectors
• Power Input: Dual redundant 24 to 110 VDC (16.8 to 137.5 VDC supported)
• Operating Temperature: -40 to 75°C
• Certifications: EN 50155, EN 50121-4, EN 45545-2, UL, CE, FCC
• Redundancy: Turbo Ring v2, Turbo Chain, STP/RSTP/MSTP, LACP
• Security: IEEE 802.1X, HTTPS/SSL, SSH, TACACS+, RADIUS, Port Lock
• Management: Web GUI, CLI (Serial/Telnet/SSH), SNMPv1/v2c/v3, Windows Utility
• VLAN Support: IEEE 802.1Q, GVRP, Port-based VLAN
• QoS: IEEE 802.1p/1Q, ToS/DiffServ
• Industrial Protocols: Modbus TCP, EtherNet/IP
• LED Indicators: PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet
• Mounting: Panel or optional DIN-rail kit
• Housing: Metal, IP54-rated with conformal coating
• Dimensions: 185 x 176.2 x 76 mm
• Weight: 1.61 kg
