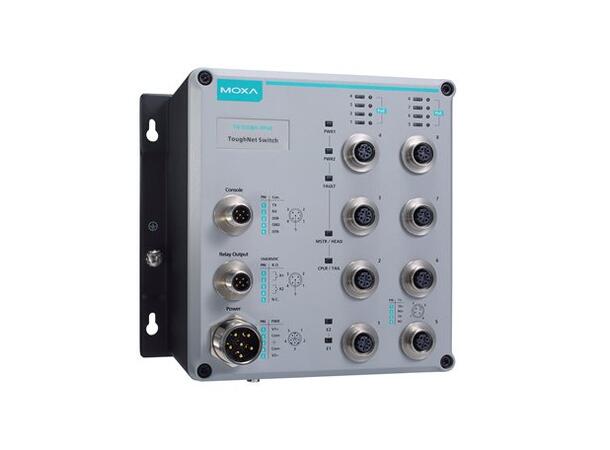

Moxa TN-5516A-8PoE-WV-CT-T

The Moxa TN-5516A-8PoE-WV-CT-T is a rugged Layer 2 managed Ethernet switch designed for railway and mission-critical industrial applications. Featuring 8 Fast Ethernet ports and 8 IEEE 802.3at PoE+ ports with M12 connectors, it ensures reliable data transmission and power delivery in harsh environments. The conformal coating enhances protection against moisture and corrosion, while compliance with EN 50155 standards makes it ideal for rolling stock and wayside deployments.

Key Features

• Ethernet Ports: 8 x 10/100BaseT(X) M12 D-coded + 8 x 802.3at PoE+ M12 D-coded connectors
• PoE Output: IEEE 802.3af/at compliant, up to 30 W per port
• Power Input: Dual redundant 24 to 110 VDC
• Operating Temperature: -40 to 75°C
• Conformal Coating: Enhanced protection against moisture, dust, and corrosion
• Certifications: EN 50155, EN 50121-4, UL, CE, FCC
• Redundancy: Turbo Ring, Turbo Chain, STP/RSTP/MSTP, Link Aggregation
• Security: IEEE 802.1X, HTTPS/SSL, SSH, TACACS+, RADIUS, Port Lock
• Management: Web GUI, CLI (Serial/Telnet/SSH), SNMPv1/v2c/v3, Syslog
• VLAN Support: IEEE 802.1Q, GVRP, Port-based VLAN
• QoS: IEEE 802.1p/1Q, ToS/DiffServ
• Industrial Protocols: Modbus TCP, EtherNet/IP
• LED Indicators: STATE, PWR1, PWR2, FAULT, Ethernet, PoE
• Mounting: Panel or DIN-rail (optional kit)
