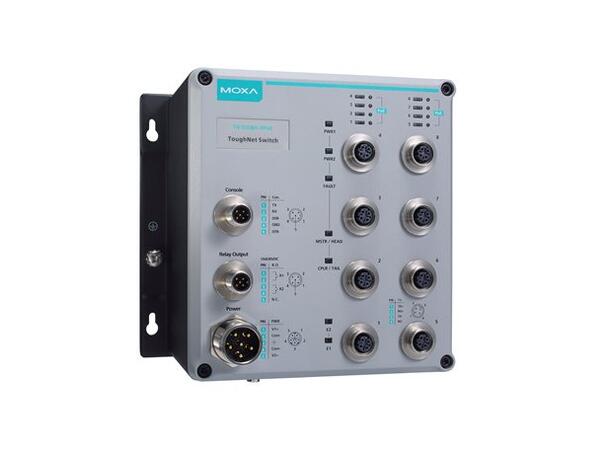

Moxa TN-5516A-WV-T

The Moxa TN-5516A-WV-T is a rugged Layer 2 managed Ethernet switch designed for railway and mission-critical industrial applications. Featuring 16 Fast Ethernet M12 ports, dual power inputs, and compliance with EN 50155 standards, it ensures reliable performance in harsh environments. Its robust design and advanced redundancy protocols make it ideal for rolling stock and wayside deployments.

Key Features

• Ethernet Ports: 16 x 10/100BaseT(X) M12 D-coded connectors
• Power Input: Dual redundant 24 to 110 VDC
• Operating Temperature: -40 to 75°C
• Certifications: EN 50155, EN 50121-4, UL, CE, FCC
• Redundancy: Turbo Ring, Turbo Chain, STP/RSTP/MSTP, Link Aggregation
• Security: IEEE 802.1X, HTTPS/SSL, SSH, TACACS+, RADIUS, Port Lock
• Management: Web GUI, CLI (Serial/Telnet/SSH), SNMPv1/v2c/v3, Syslog
• VLAN Support: IEEE 802.1Q, GVRP, Port-based VLAN
• QoS: IEEE 802.1p/1Q, ToS/DiffServ
• Industrial Protocols: Modbus TCP, EtherNet/IP
• LED Indicators: PWR1, PWR2, FAULT, Ethernet status
• Mounting: Panel or DIN-rail (optional kit)
