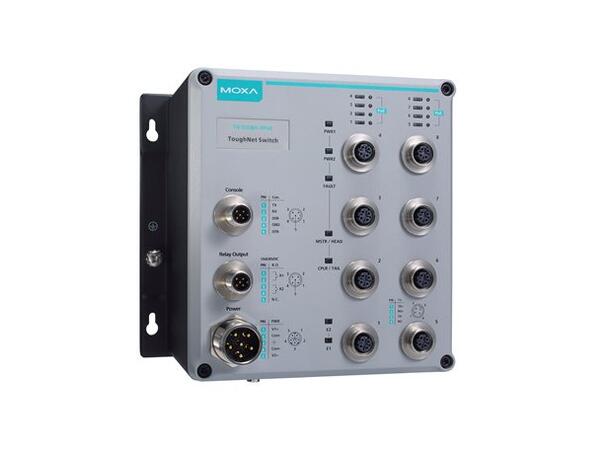

Moxa TN-5518A-8PoE-2GTXBP-WV-T

The Moxa TN-5518A-8PoE-2GTXBP-WV-T is a Layer 2 managed Ethernet switch built for demanding railway and industrial environments. It offers 8 Fast Ethernet PoE+ ports, 8 additional Fast Ethernet ports, and 2 Gigabit Ethernet uplink ports, all with M12 connectors. With EN 50155 compliance, wide voltage input, and extended operating temperature range, it ensures reliable performance in mission-critical applications.

Key Features

• Ports: 8 x 10/100BaseT(X) PoE+, 8 x 10/100BaseT(X), 2 x Gigabit Ethernet uplinks
• PoE Standard: IEEE 802.3at/af (PoE+), 120 W total power budget
• Power Input: 24-110 VDC, dual redundant
• Alarm Output: 2 relay outputs via M12 A-coded connector
• Housing & Rating: Rugged metal housing, IP54 protection
• Certifications: EN 50155, EN 50121-4
• Operating Temperature: -40 C to 75 C
• Dimensions: 250 x 178.6 x 115 mm
• Weight: 3439 g
